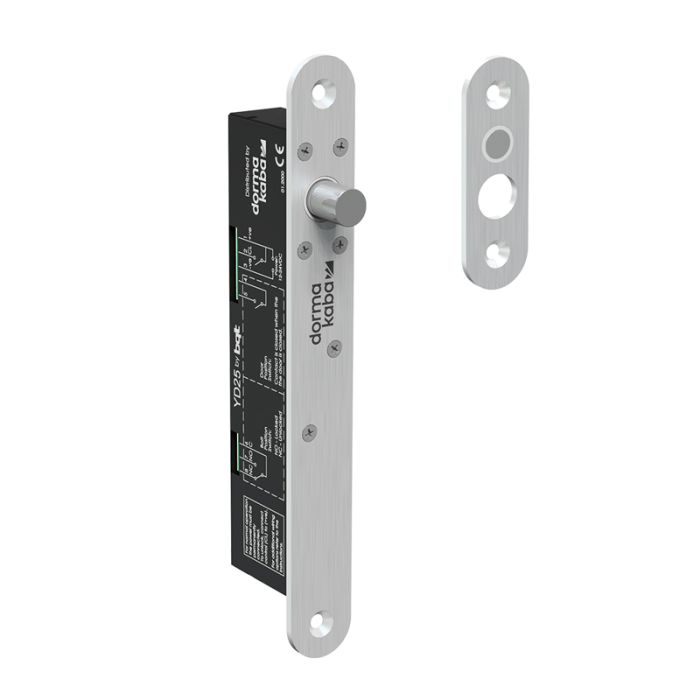

DB25PTO dormakaba DB25 Power To Open Electronic Deadbolt - 12-24 VDC
The DB25PTO is the power-to-open version of the dormakaba DB25 electronic deadbolt lock. The DB25 platform combines automatic deadbolting, a 12.7 mm stainless steel bolt pin, anti-tailgate and anti-tamper features, reverse polarity protection and door and bolt position monitoring.
This SKU suits access-control doors where the DB25 form factor and fail-secure listed variant are required. Its shared family specifications support use on single or double acting doors with 12 - 24 VDC power, compact lock dimensions and a range of compatible strikes and mounting accessories.
Key Features
- Power-to-open variant is identified separately from the DB25PTL in the item table
- Automatic deadbolting helps maintain secure relocking after operation
- Monitoring outputs support better door-state visibility in access systems
- Compact electronic bolt design fits single or double acting door applications
- Electrical protection features support more resilient installation behaviour
- Catalogue Family:
- LOCKING
- Listed Item:
- DB25PTO D/BOLT 12-24VDC F/SECURE MNT'D
- Lock Dimensions:
- 210L x 25W x 42D mm
- Bolt Pin:
- 12.7 mm diameter stainless steel
- Holding Force:
- 10,000 N / 1,000 kg
- Voltage At Lock:
- 12 - 24 VDC +/- 10%
- Holding Current:
- 160 mA at 12 V; 95 mA at 24 V
- Operating Current:
- 1.25 A at 12 V; 1 A at 24 V
- Monitoring:
- Door and bolt position monitors
- Endurance:
- Cycle tested to 1,000,000 operations
- Product Type:
- Locking
