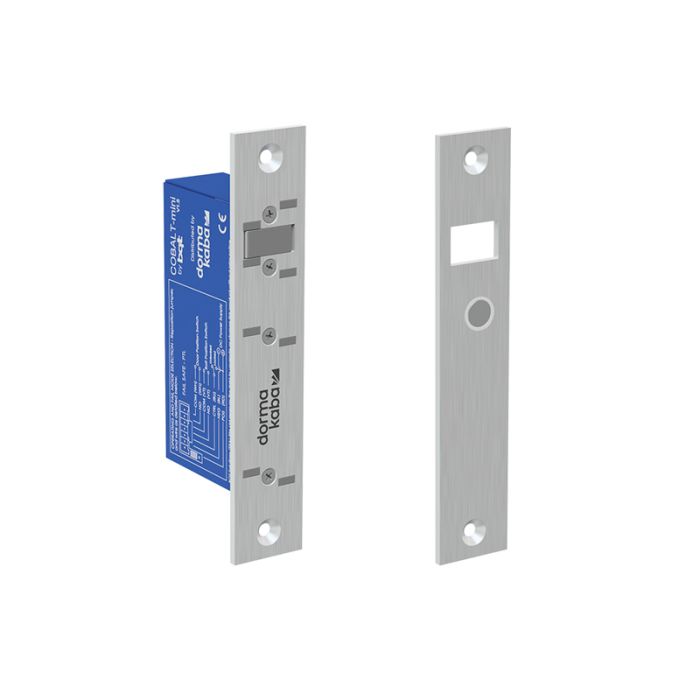

SL30SGL dormakaba COBALT-mini Electronic Side Load Lock - Single Acting Doors
The SL30SGL is a dormakaba COBALT-mini electronic side load lock for commercial and residential single-acting doors. It features motor-driven operation, a 12-24 VDC input, automatic deadbolting, field-selectable fail-safe or fail-secure operation, and door and bolt position monitoring.
The lock is designed for single-acting doors and supports release under side load. It also supports door misalignment tolerance and compatible surface-mount accessories.
Key Features
- Compact side-load design is purpose-matched to single acting doors
- Door misalignment correction helps maintain operation when door fit is imperfect
- Release under side load supports dependable unlocking when pressure is present
- Dual monitoring improves status feedback for integrated access control systems
- Field convertible configuration helps installers adapt the lock mode on site
- Catalogue Family:
- LOCKING
- Model:
- SL30SGL COBALT-mini
- Door Type:
- Single acting doors
- Lock Dimensions:
- 160L x 30W x 51D mm
- Voltage At Lock:
- 12 - 24 VDC +/- 15%
- Holding Force:
- 10,000 N / 1,000 kg
- Door Misalignment:
- Up to 8 mm
- Side Load Release:
- Up to 100 kg opening load on door
- Holding Current:
- less than 50 mA at 12 V; less than 30 mA at 24 V
- Operating Current:
- less than 250 mA at 12 V; less than 200 mA at 24 V
- Endurance:
- 300,000 cycles normal operation
- Product Type:
- Locking
