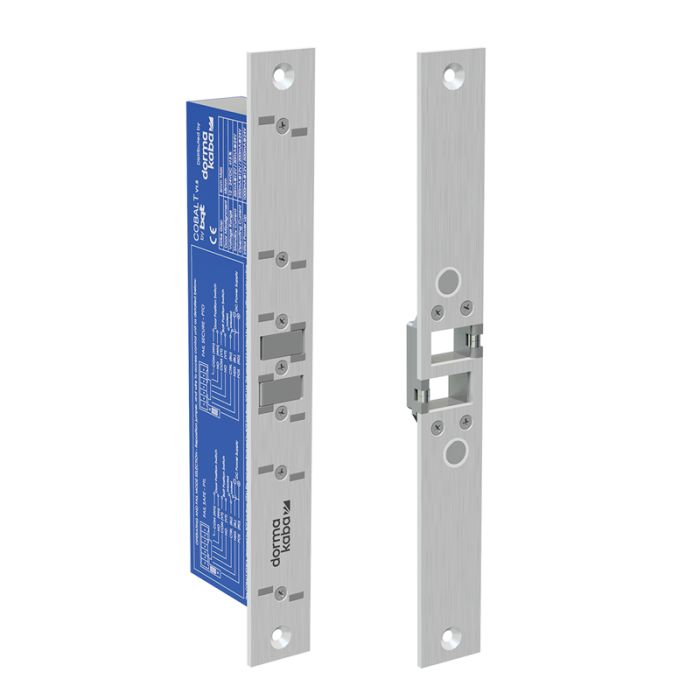

SL30DBL dormakaba COBALT Electronic Side Load Lock - Double Acting Doors
The SL30DBL is the dormakaba COBALT electronic side load lock for commercial and residential double acting doors. It uses a motor-driven design with 12 - 24 VDC input, automatic deadbolting, dual monitoring and the ability to correct door misalignment of up to +/- 8 mm.
This lock is designed for applications where door alignment and release under side load are important practical concerns. Its field-convertible fail-safe/fail-secure configuration, strong holding force and accessory-supported surface or glass mounting make it suitable for a range of secure double-acting door installations.
Key Features
- Side load release capability helps the lock release even when pressure is applied to the door
- Door-alignment correction supports more forgiving operation on real-world door sets
- Field convertible fail-safe or fail-secure setup reduces variant-management complexity
- Dual monitoring gives systems visibility of both bolt and door position
- Surface-mount accessory support helps adapt the lock to glass or non-mortice applications
- Catalogue Family:
- LOCKING
- Model:
- SL30DBL COBALT
- Door Type:
- Double acting doors
- Lock Dimensions:
- 255L x 30W x 51D mm
- Voltage At Lock:
- 12 - 24 VDC +/- 15%
- Holding Force:
- 10,000 N / 1,000 kg
- Door Misalignment:
- +/- 8 mm
- Side Load Release:
- Up to 100 kg opening load on door
- Holding Current:
- less than 50 mA at 12 V; less than 30 mA at 24 V
- Operating Current:
- less than 250 mA at 12 V; less than 200 mA at 24 V
- Endurance:
- 300,000 cycles normal operation
- Product Type:
- Locking
