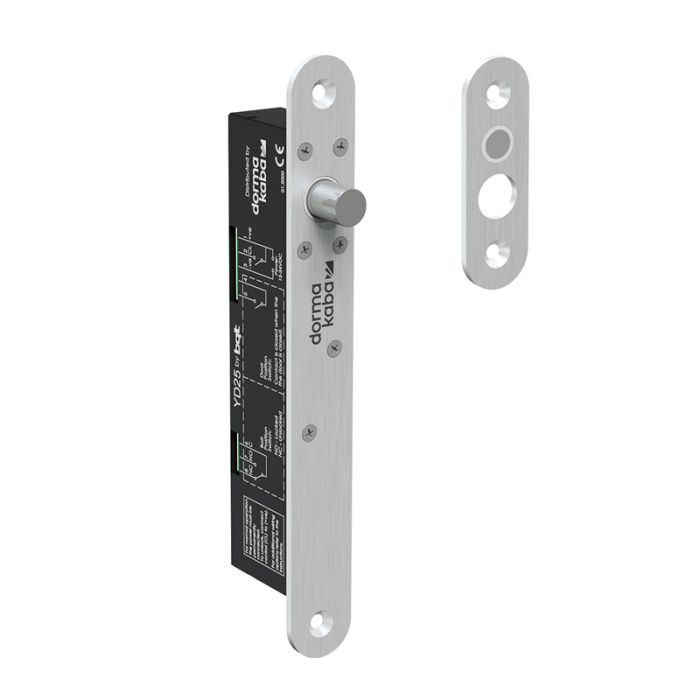

DB25PTL dormakaba DB25 Power To Lock Electronic Deadbolt - 12-24 VDC
The DB25PTL is the power-to-lock version of the dormakaba DB25 electronic deadbolt lock. The DB25 platform is a streamlined electronic deadbolt with automatic deadbolting, a 12.7 mm stainless steel bolt pin, dual monitoring and support for mortice mounting horizontally or vertically.
This variant is suited to single or double acting door applications that need an electronically controlled deadbolt with access-control integration. The shared DB25 specifications support its use where a compact 12 - 24 VDC lock, defined strike options and door and bolt position monitoring are required.
Key Features
- Automatic deadbolting supports secure relocking after access events
- Dual monitoring provides door and bolt position feedback for connected systems
- Compact deadbolt body suits streamlined mortice-mounted door hardware layouts
- Protection features help the lock tolerate common electrical connection issues
- Shared DB25 accessory range supports surface or glass mounting where specified
- Catalogue Family:
- LOCKING
- Listed Item:
- DB25PTL D/BOLT 12-24VDC F/SAFE MONT'D
- Lock Dimensions:
- 210L x 25W x 42D mm
- Bolt Pin:
- 12.7 mm diameter stainless steel
- Holding Force:
- 10,000 N / 1,000 kg
- Voltage At Lock:
- 12 - 24 VDC +/- 10%
- Holding Current:
- 160 mA at 12 V; 95 mA at 24 V
- Operating Current:
- 1.25 A at 12 V; 1 A at 24 V
- Monitoring:
- Door and bolt position monitors
- Endurance:
- Cycle tested to 1,000,000 operations
- Product Type:
- Locking
