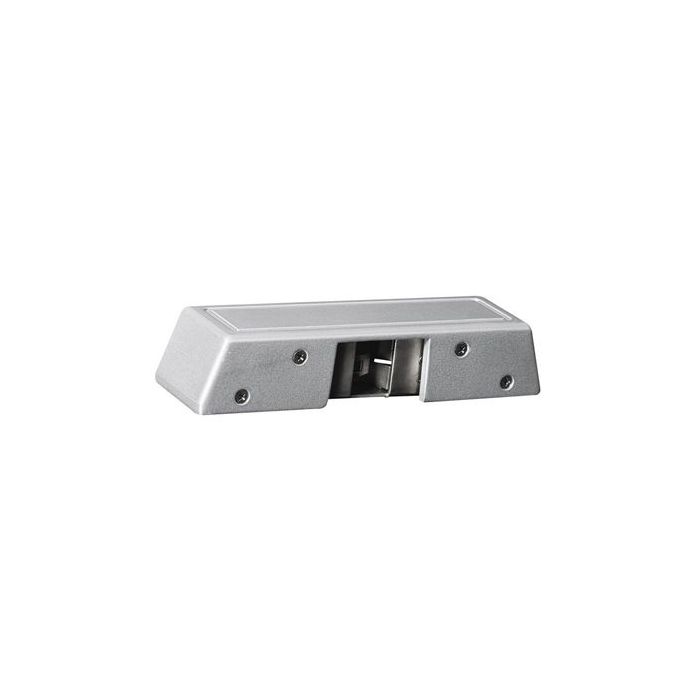

ES6000S-1 Lockwood Padde ES6000 Surface Monitored Hook Lock - 12-30 VDC Fail Safe
The ES6000S-1 is the surface-mounted fail-safe monitored variant of the Lockwood Padde ES6000 hook lock range. Supports a 12-30 VDC supply with monitored door locked and door closed status outputs. Features a 680 kg static strength rating and a cast aluminium surface cover.
Designed for swinging and sliding doors, the ES6000 can be mounted vertically or horizontally on wood or steel door frames. Its preload capability, low profile and monitored hook-lock operation suit heavier access-control installations where side load and door movement need to be managed.
Key Features
- Surface-mounted monitored configuration suits access-controlled swing or sliding doors
- High preload capability helps the lock operate under side-load conditions
- Vertical or horizontal mounting gives installers flexibility on different frames
- Low-profile hook lock body helps reduce intrusion into door headroom
- Back EMF and reverse-polarity protection support more resilient electrical integration
- Monitored:
- Monitored
- PTO/PTL:
- Power To Lock (Fail Safe)
- Mounting:
- Surface Mount
- Product Type:
- Locking
