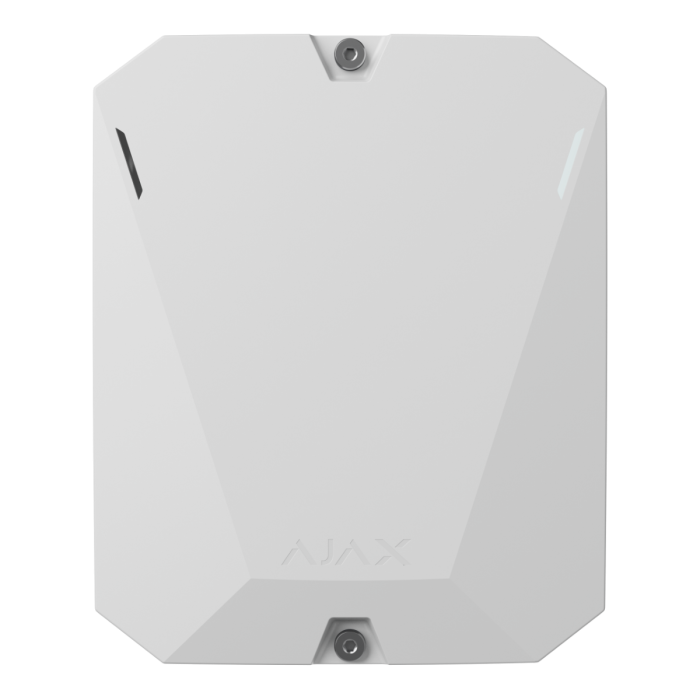

AJAMULTITW Multi Transmitter Jeweller 18 Zone Integration Module - White
AJAMULTITW Multi Transmitter Jeweller is a white 18-zone wired-to-wireless integration module for connecting third-party wired detectors into an Ajax system. It communicates over Jeweller, supports one wired device per zone, and allows installers to configure event types and wiring schemes through Ajax app workflows.
It is useful for retrofit projects where existing wired sensors need Ajax security control, app notifications and automation without replacing the entire field installation. With supported firmware, the module handles NC, NO, EOL, 2EOL and 3EOL wiring, while providing 12 V power outputs and backup accumulator support.
Key Features
- Modernises existing wired alarm sites by linking up to 18 wired devices into Ajax control
- Supports installer-friendly configuration through Ajax PRO app workflows and automatic EOL measurement on supported firmware
- Improves event clarity by assigning meaningful alarm types to connected wired devices
- Uses Jeweller communication for the wireless connection between the module and Ajax system
- Supports practical retrofit cabling with detector-to-module runs up to 400 m
- Catalogue Family:
- POWER SUPPLY
- Device Type:
- MultiTransmitter Jeweller integration module
- Colour:
- White
- Zones:
- 18, one wired device per zone
- Connection Types:
- NO, NC and EOL; NO, NC, EOL, 2EOL and 3EOL with firmware 2.13.0 and later
- Communication Technology:
- Jeweller wireless communication
- Communication Range:
- Up to 2,000 m in line of sight
- Cable Length Between Devices and Module:
- Up to 400 m
- Power Supply:
- 100-240 V AC, 50/60 Hz
- Backup Power Supply:
- 12 V accumulator up to 7 Ah capacity, not included
- Power Outputs for Connected Devices:
- 10.5-15 V DC, up to 1 A total across four main outputs
- Protection Class:
- IP50
- Operating Temperature:
- -10 deg C to +40 deg C
- Operating Humidity:
- Up to 75%
- Dimensions:
- 196 x 238 x 100 mm
- Weight:
- 805 g
- Product Type:
- Power Supply
