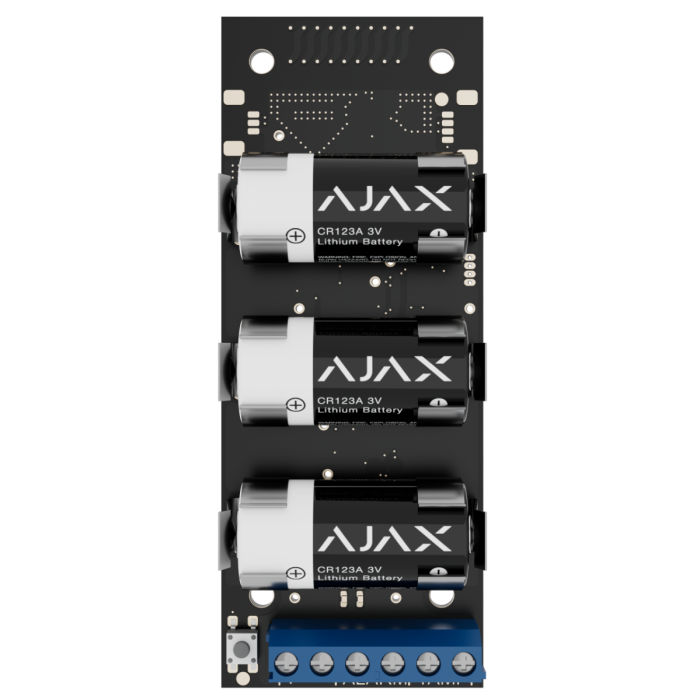

AJATRANS Transmitter Jeweller Wired Detector Integration Module
AJATRANS Transmitter Jeweller is an integration module for connecting third-party wired detectors and devices to an Ajax security system. It receives alarm and tamper activations through wired terminals and transmits events to the hub using the protected Jeweller radio protocol.
The module suits retrofit or specialist detector applications where wired alarm devices need to report through Ajax. It supports event-type configuration for connected devices, has two pairs of wired zones for alarm and tamper, and can provide 3.3 V power to the connected detector from the module batteries.
Key Features
- Connects third-party wired detectors into Ajax reporting without replacing the detector itself
- Supports alarm and tamper signal handling through separate wired terminal pairs
- Lets installers assign event types so notifications and CMS event codes better match the connected device
- Uses Jeweller communication to send wired-detector events back to the Ajax hub
- Runs on batteries and can supply low-voltage power to the connected detector
- Catalogue Family:
- ALARM SENSOR
- Device Type:
- Transmitter Jeweller integration module
- System Role:
- Connects third-party wired detectors to Ajax security system
- Communication Protocol:
- Jeweller
- Communication Range:
- Up to 1,600 m with no obstacles and case removed
- Wired Zones:
- Two pairs: alarm and tamper
- Detector Power Supply:
- 3.3 V from module batteries
- Supported Uses:
- Panic and auxiliary buttons, indoor and outdoor motion detectors, opening, vibration, breakage, fire, gas, leakage and other wired detectors
- Configurable Event Types:
- Includes intrusion, fire, auxiliary alarm, panic button, gas alarm, malfunction, leakage, glass break, high temperature, low temperature, masking, duress code opening, vibration and custom
- Battery:
- 3 x CR123A batteries
- Complete Set:
- Transmitter, 3 x CR123A battery, installation kit and quick start guide
- Product Type:
- Alarm Sensor
