AJAX REX JEWELLER WIRELESS RANGE EXTENDER

SKU: AJAREXW Supplier SKU: 30666

KEY FEATURES

Product Downloads

Description
Download
AJAREXW Datasheet
AJAREXW User Manual

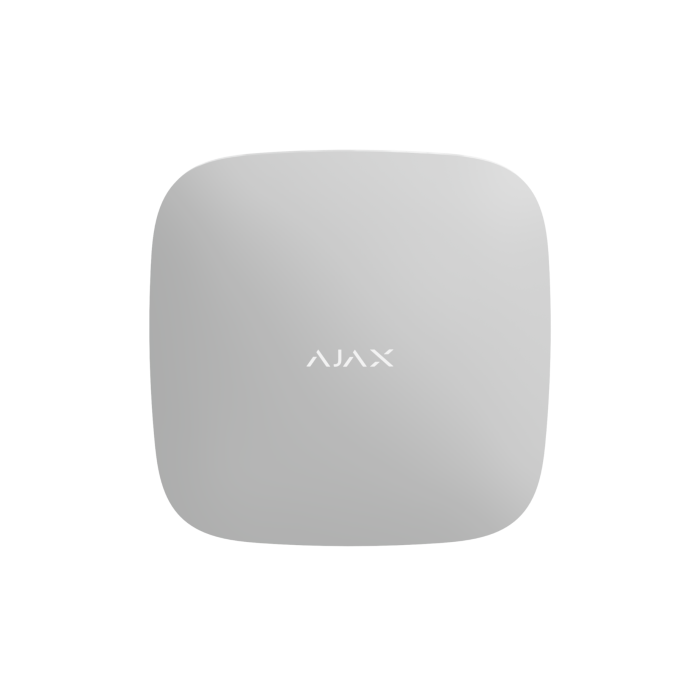

AJAREXW Ajax ReX Jeweller Wireless Radio Signal Range Extender - White

The Ajax ReX Jeweller is an indoor wireless radio signal range extender that expands communication between a compatible Ajax hub and paired Jeweller devices. It relays commands, alarms and events in both directions, with a radio communication range of up to 1,800 m between the extender and hub in open space.

The white IP20 enclosure is designed for indoor Ajax security system installations where supported devices need to operate farther from the hub. Automatic radio power control helps reduce power consumption and interference, while frequency hopping assists with maintaining communication in challenging radio environments.

Key Features

  • Remote configuration through Ajax apps simplifies setup and ongoing system management
  • Fast alarm relay to the hub supports prompt system event handling
  • Dynamic-key encryption and device authentication help protect system communications
  • Tamper monitoring reports attempts to detach the unit or remove its mounting panel
  • Built-in battery backup helps maintain operation when mains power is unavailable
24 MONTHS
Catalogue Family:
POWER SUPPLY
Device Type:
REX JEWELLER WIRELESS RADIO SIGNAL RANGE EXTENDER
Colour:
WHITE
Communication Technology:
Jeweller wireless communication
Radio Communication Range:
Up to 1,800 m between range extender and hub in open space
Connected Devices:
Up to 249, depending on hub model
Rex Units per Hub:
Up to 5, depending on hub model
Alarm Delivery Time:
0.3 s
Main Power Supply:
110-240 V AC, 50/60 Hz, up to 6 W
Backup Battery:
Built-in rechargeable Li-ion 2 Ah battery
Backup Battery Life:
Up to 35 hours calculated battery life
Alternative Power:
12 V DC via separately sold alternative power supply unit
Protection Class:
IP20
Operating Temperature:
-10 DEG C TO +40 DEG C
Dimensions:
163 x 163 x 36 mm
Weight:
330 g
Product Type:
JEWELLER RANGE EXTENDER
Range:
1.8KM
Frequency:
915-922 MHZ
