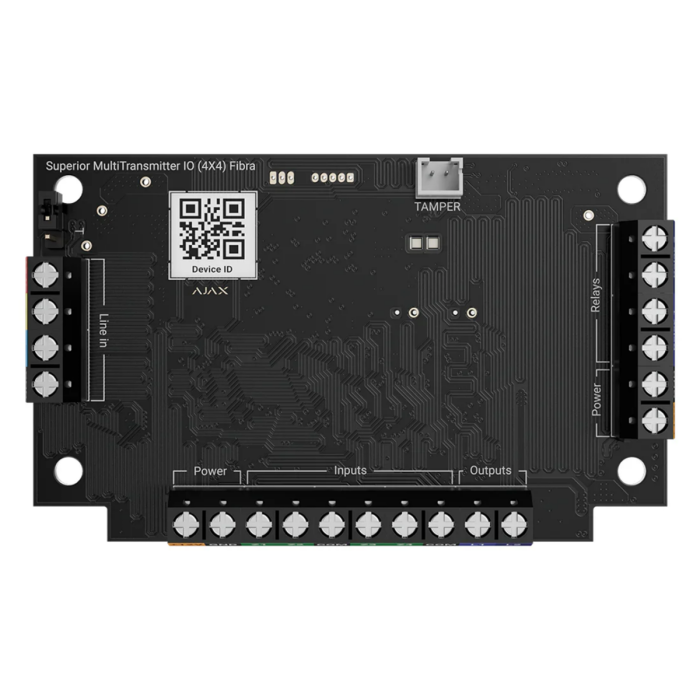

AJAFMULTI4x4 Superior Multi Transmitter IO 4x4 Fibra Module
The AJAFMULTI4x4 Superior Multi Transmitter IO 4x4 Fibra is a wired Ajax integration module with four inputs and four outputs for connecting and controlling third-party devices. It supports NC, NO, EOL, 2EOL and 3EOL connection types, as well as pulse and bistable devices, with more than 10 event types available for each input.
Designed for Ajax Superior Fibra systems, the module enables integration of existing wired alarm devices and control of connected equipment such as locks, blocking elements and sirens. It combines Fibra communication with Ajax app configuration, two logical outputs, two relay outputs and a dedicated 12 V power supply for connected devices.
Key Features
- Integrates third-party detectors and controlled devices into Ajax Superior Fibra systems.
- Provides four inputs with two logical outputs and two relay outputs for monitoring and control.
- Supports NC, NO, EOL, 2EOL and 3EOL wiring configurations.
- Supports EOL resistor scanning, QR code pairing and remote configuration through Ajax apps.
- Includes a dedicated 12 V DC output for powering compatible wired devices.
- Catalogue Family:
- POWER SUPPLY
- Product Line:
- Superior
- Inputs:
- 4
- Outputs:
- 4, including two logical outputs and two relay outputs
- Connection Types:
- NC, NO, EOL, 2EOL and 3EOL
- Event Types:
- More than 10 event types for each input
- Power Supply From Fibra Line:
- 12-28 V DC, up to 330 mA at nominal 24 V
- Power Supply for Connected Devices:
- 12 V DC, up to 500 mA
- Communication Range:
- Up to 2,000 m with specified cable
- Cable Length Between Devices and Module:
- Up to 400 m
- Operating Temperature:
- -10 deg C to +40 deg C
- Operating Humidity:
- Up to 75%
- Dimensions:
- 93 x 55 x 27 mm
- Weight:
- 44.9 g
- Compliance References:
- EN 50131 Grade 3, PD 6662:2017 and INCERT listed
- Product Type:
- Power Supply
