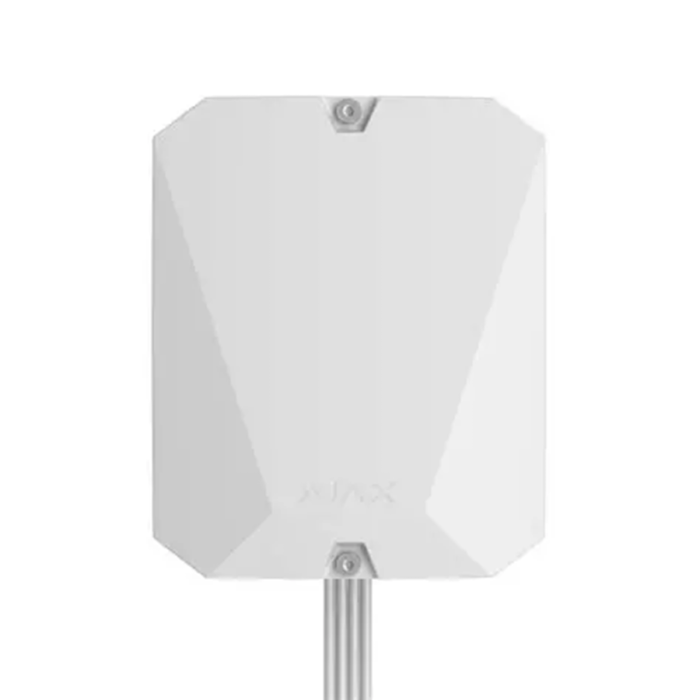

AJAFMULTITW Multi Transmitter Jeweller 18 Zone Wireless Integration Module - White
AJAFMULTITW Multi Transmitter Jeweller is a white wireless integration module for connecting up to 18 third-party wired devices to an Ajax security system. It is a Jeweller device, with support for NO, NC and EOL wiring, and 2EOL and 3EOL support on firmware version 2.13.0 and later.
It is intended for upgrading existing wired alarm equipment while giving users Ajax app control, data-rich notifications and automation scenarios. The unit uses Jeweller encrypted radio communication with an Ajax hub, supports cable runs up to 400 m between wired devices and the module, and includes main and backup power provisions.
Key Features
- Turns existing wired sensors into managed Ajax zones while keeping control and alerts inside Ajax apps
- Supports a broad set of alarm event types so each connected device can report its role more clearly
- Uses Jeweller encrypted radio communication for the wireless link back to the Ajax system
- Helps installers standardise older wired layouts through automatic EOL resistance measurement on supported firmware
- Includes backup battery support so the integration module can keep operating during a mains outage
- Catalogue Family:
- POWER SUPPLY
- Device Type:
- MultiTransmitter Jeweller wireless integration module
- Zones:
- 18, one wired device per zone
- Connection Types:
- NO, NC and EOL; NO, NC, EOL, 2EOL and 3EOL with firmware 2.13.0 and later
- Communication Technology:
- Jeweller wireless communication
- Communication Range:
- Up to 2,000 m in line of sight
- Cable Length Between Devices and Module:
- Up to 400 m
- Power Supply:
- 100-240 V AC, 50/60 Hz
- Backup Power Supply:
- 12 V accumulator up to 7 Ah capacity, not included
- Power Outputs for Connected Devices:
- 10.5-15 V DC, up to 1 A total across four main outputs
- Protection Class:
- IP50
- Operating Temperature:
- -10 deg C to +40 deg C
- Operating Humidity:
- Up to 75%
- Dimensions:
- 196 x 238 x 100 mm
- Weight:
- 805 g
- Product Type:
- Power Supply
