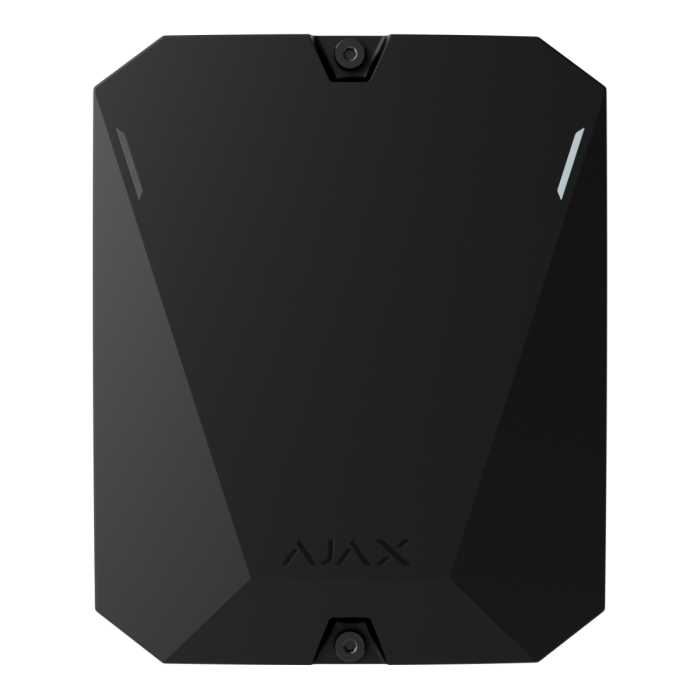

Ajax 30661 MultiTransmitter Jeweller 18-Zone Wired Integration Module - 100-240 V
The Ajax MultiTransmitter Jeweller is an 18-zone integration module that connects third-party wired detectors to an Ajax security system, with one device supported per zone. Units running firmware version 2.13.0 or later support NO, NC, EOL, 2EOL and 3EOL connection types for integration with a range of detector circuits.
Two-way encrypted Jeweller communication links the module to a compatible Ajax hub over distances of up to 2,000 m in an open space. The module operates from a 100-240 V AC supply and provides four power outputs for connected devices. Connected wired security equipment can be managed through the Ajax system.
Key Features
- Ajax app control, notifications and automation scenarios for connected wired detectors
- Individual zone handling for device-specific events and alarm identification
- Automatic EOL resistance detection in Ajax PRO apps on supported firmware versions
- Cable runs up to 400 m between the module and detectors
- Support for a 12 V backup battery and two enclosure tampers for backup operation and physical interference detection
- Catalogue Family:
- POWER SUPPLY
- Device Type:
- MultiTransmitter Jeweller integration module
- Colour:
- Black
- Zones:
- 18, one wired device per zone
- Connection Types:
- NO, NC and EOL; NO, NC, EOL, 2EOL and 3EOL with firmware 2.13.0 and later
- Communication Technology:
- Jeweller wireless communication
- Communication Range:
- Up to 2,000 m in line of sight
- Cable Length Between Devices and Module:
- Up to 400 m
- Power Supply:
- 100-240 V AC, 50/60 Hz
- Backup Power Supply:
- 12 V accumulator up to 7 Ah capacity, not included
- Power Outputs for Connected Devices:
- 10.5-15 V DC, up to 1 A total across four main outputs
- Protection Class:
- IP50
- Operating Temperature:
- -10 deg C to +40 deg C
- Operating Humidity:
- Up to 75%
- Dimensions:
- 196 x 238 x 100 mm
- Weight:
- 805 g
- Product Type:
- Power Supply
- Wiring:
- Wireless
