AJAFTRANS Superior Transmitter Fibra Integration Module
AJAFTRANS Superior Transmitter Fibra is a compact wired integration module for connecting a third-party wired device to an Ajax system. It supports NC, NO, EOL, 2EOL and 3EOL connection types, pulse and bistable operating modes, more than 10 event types, and a 12 V output for the connected device.

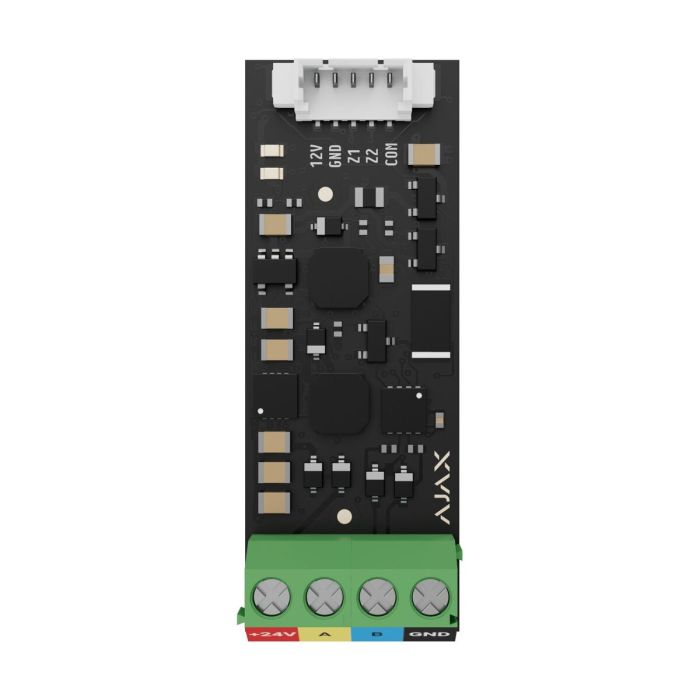

The module is made for upgrades where a single existing detector or specialist device needs Ajax app reporting, remote configuration and automation triggers. Its small board format is designed to fit inside a connected detector, while Fibra communication links it back to the Ajax hub or line extension module.
Key Features
- Brings one third-party wired device into Ajax monitoring without replacing the whole field device
- Fits inside many connected detectors, keeping the installation compact and discreet
- Supports flexible input logic so installers can map common alarm and control behaviours accurately
- Provides app-side event reporting and automation triggers from the connected third-party device
- Speeds setup with automatic line scanning, QR-code pairing and EOL resistance measurement
- Catalogue Family:
- ALARM / INTRUSION
- Product Line:
- Superior
- Zones:
- 2
- Connection Types:
- NC, NO, EOL, 2EOL and 3EOL
- Operating Modes:
- Pulse and bistable
- Event Types:
- More than 10 event types
- Fibra Line Power:
- 7-30 V DC, 185 mW without load or 1,224 mW with load
- Output to Connected Wired Device:
- 10.5-15 V DC, up to 50 mA total
- Communication Range:
- Up to 2,000 m with specified cable
- Cable Length to Connected Device:
- Up to 3 m
- Protection Class:
- IP40
- Installation Temperature:
- -10 deg C to +40 deg C
- Board Operating Temperature:
- -25 deg C to +50 deg C
- Operating Humidity:
- Up to 75%
- Dimensions:
- 40 x 15 x 12 mm
- Product Type:
- Alarm / Intrusion
