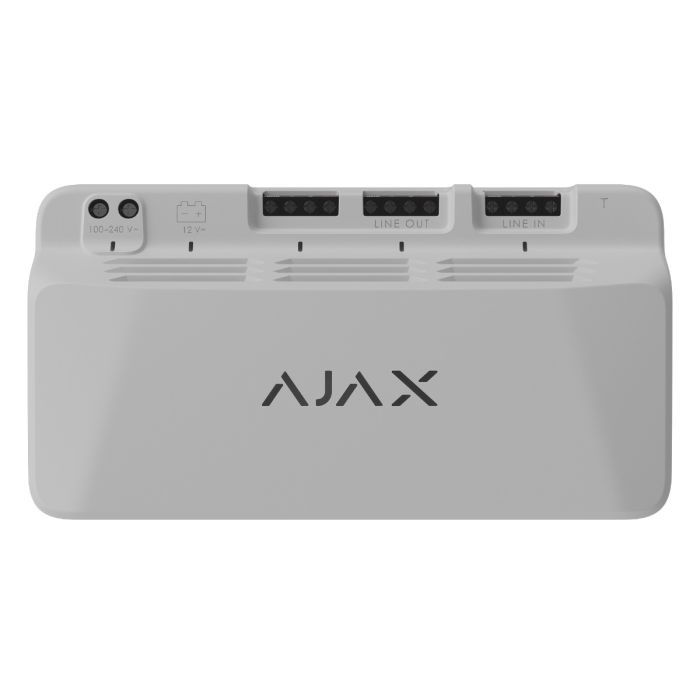

AJAFLINESUPW Superior Line Supply 45 W Fibra Module
The AJAFLINESUPW Superior Line Supply 45 W Fibra is an additional power supply module for Ajax wired Fibra devices with one Fibra output line. It provides 30 W of output power for connected devices and 15 W for backup battery charging, while supporting Fibra line extension of up to 2,000 m with the specified cable.
Designed for Superior Fibra installations, the module provides additional line power, backup battery support and configuration through Ajax apps. It features short-circuit and overvoltage protection and installs into a compatible Ajax Case enclosure, sold separately.
Key Features
- Provides additional power capacity for wired Fibra installations with increased device loads or extended cable runs.
- Supports a 12 V backup battery to maintain operation during mains power loss.
- Extends a Fibra line by up to 2,000 m using the specified copper cable.
- Supports configuration, testing and status monitoring through Ajax apps.
- Provides one powered Fibra output line with 45 W total power capacity.
- Catalogue Family:
- POWER SUPPLY
- Product Line:
- Superior
- Output Lines:
- 1
- Output Power:
- 30 W for connected devices and 15 W for backup battery charging
- Output Voltage:
- 24 V DC
- Maximum Output Current:
- 1.25 A
- Main Power Supply:
- 100-240 V AC, 50/60 Hz
- Backup Power Supply:
- 12 V DC battery, 7-18 Ah capacity, not included
- Communication Range:
- Up to 2,000 m with specified U/UTP Cat.5 cable
- Wired Connection:
- U/UTP Cat.5 4 x 2 x 0.51 mm cable or 4 x 0.22 mm signal cable with copper conductor
- Operating Temperature:
- -10 deg C to +40 deg C
- Operating Humidity:
- Up to 75%
- Dimensions:
- 160 x 85 x 53 mm
- Weight:
- 269 g (white device); 262 g (black device)
- Compliance:
- EN 50131 Grade 3, PD 6662:2017 and INCERT listed
- Product Type:
- Power Supply
