AJAFLINEPRO Superior Line Protect Fibra Module

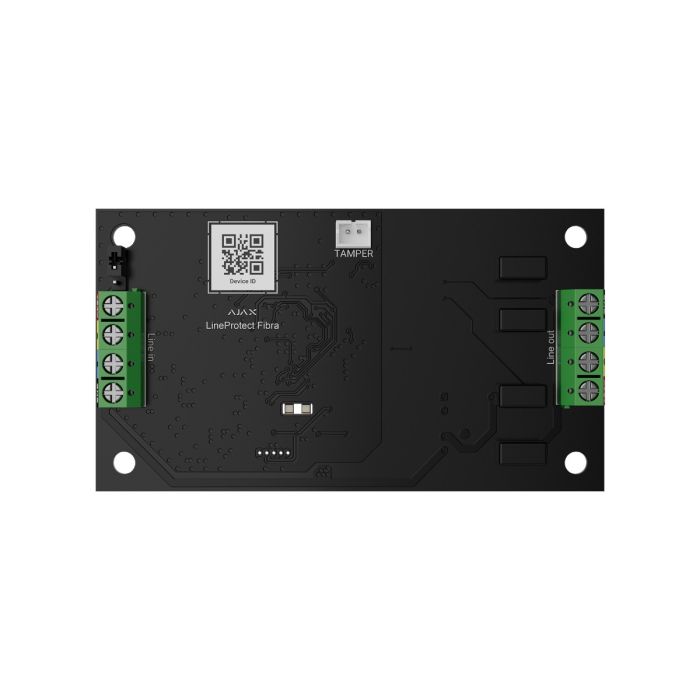

AJAFLINEPRO Superior Line Protect Fibra is a board module that protects Ajax Fibra devices on a wired line against short circuits, overvoltage, mains voltage application and other sabotage conditions. It monitors the input and output voltage of the Fibra line and cuts power to devices installed before the module when abnormal voltage is detected.
The module supports encrypted Fibra wired communication with compatible Ajax hubs, regular status polling, and configuration or testing through Ajax apps. It is compatible with Ajax Case A (106), Case B (175) and Case D (430) enclosures (sold separately), and includes a jumper in the complete set.
Key Features
- Monitors the Fibra line and isolates abnormal voltage to protect connected devices.
- Supports automatic line scanning and QR-code pairing through Ajax apps.
- Supports self-diagnosis, regular polling and status notifications.
- Compatible with Ajax Case A (106), Case B (175) and Case D (430) enclosures for protected board installation.
- Supports wired Fibra communication over distances up to 2,000 m using the specified copper cable.
- Catalogue Family:
- POWER SUPPLY
- Product Line:
- Superior
- Communication Technology:
- Fibra wired communication
- Wired Connection:
- U/UTP Cat.5 4 × 2 × 0.51 mm cable or 4 × 0.22 mm signal cable with copper conductor
- Communication Range:
- Up to 2,000 m using the specified U/UTP Cat.5 cable
- Power Supply:
- Fibra line
- Operating Voltage Range:
- 5.7–30 V DC, up to 281 mW
- Nominal Operating Voltage:
- 24 V DC
- Current Consumption:
- 1.6 mA (quiescent); 11.7 mA maximum at nominal voltage
- Compatible Enclosures:
- Ajax Case A (106), Case B (175) and Case D (430), sold separately
- Operating Temperature:
- -10°C to +40°C
- Operating Humidity:
- Up to 75%
- Dimensions:
- 90 × 50 × 15 mm
- Weight:
- 12 g
- Compliance:
- EN 50131 (Grade 3), PD 6662:2017, INCERT
- Product Type:
- Power Supply
