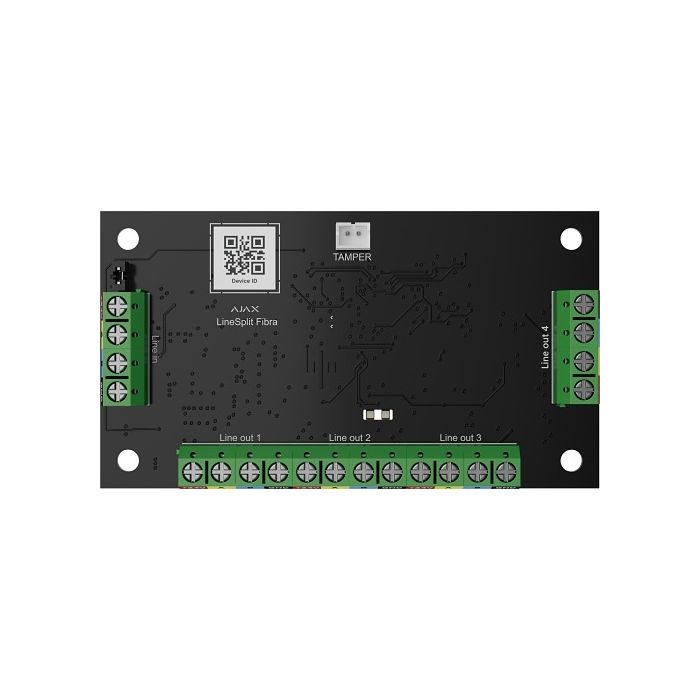

AJAFLINESPL Superior Line Split Fibra Module
The AJAFLINESPL Superior Line Split Fibra is a module designed to split one Ajax Fibra line into four output lines. Each output line can run up to 2,000 m when connected using the specified U/UTP Cat.5 twisted-pair cable. The module is powered by the hub and does not function as an additional line power supply.
Designed for Superior Fibra installations, the module enables a single wired alarm line to branch into multiple output lines. It supports sequential installation of up to 10 LineSplit modules and is designed for installation inside an Ajax Case, sold separately.
Key Features
- Splits one Fibra input line into four output lines for flexible wired system layouts.
- Supports output cable runs of up to 2,000 m per line with the specified copper U/UTP Cat.5 cable.
- Powered directly by the hub without requiring an additional line power supply.
- Supports setup, line scanning and QR-code pairing through the Ajax app.
- Allows sequential installation of up to 10 Superior LineSplit Fibra modules.
- Catalogue Family:
- POWER SUPPLY
- Product Line:
- Superior
- Function:
- Splits one Fibra input line into four output lines
- Input Lines:
- 1
- Output Lines:
- 4
- Communication Technology:
- Fibra wired communication
- Communication Range:
- Up to 2,000 m for each output line with the specified cable
- Wired Connection:
- U/UTP Cat.5 4 x 2 x 0.51 mm cable or 4 x 0.22 mm signal cable with copper conductor
- Power Supply:
- Powered by the hub, 6-30 V DC, up to 440 mW
- Sequential Installation:
- Up to 10 Superior LineSplit Fibra modules can be installed sequentially
- Operating Temperature:
- -10 deg C to +40 deg C
- Operating Humidity:
- Up to 75%
- Dimensions:
- 90 x 50 x 15 mm
- Weight:
- 17 g
- Compliance:
- EN 50131 Grade 3, PD 6662:2017, INCERT
- Product Type:
- Power Supply
