AJAX

AJAX MULTIRELAY FIBRA MODULE

SKU: AJAFMRELAY Supplier SKU: 127496
Width:
55.00 (cm)
Height:
90.00 (cm)
Depth:
30.00 (cm)

KEY FEATURES

Product Downloads

Description
Download
AJAFMRELAY Datasheet

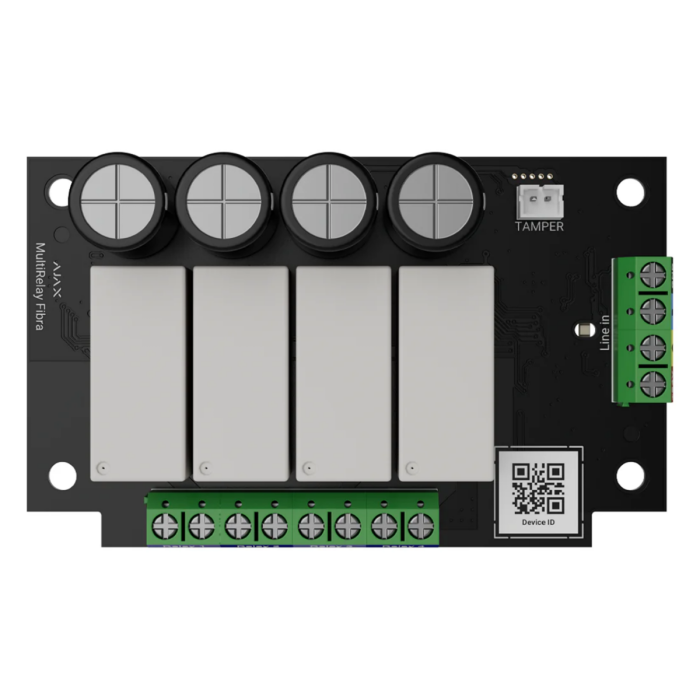

AJAFMRELAY Ajax Superior MultiRelay Fibra Four-Channel Wired Relay Module with Dry Contacts

The Ajax Superior MultiRelay Fibra is a four-channel wired relay module with potential-free dry contacts for remotely controlling connected power circuits. Its four relay outputs support bistable and pulse modes, normally open or normally closed states, and adjustable pulse times from 1 second to 2 hours.

The module uses encrypted Fibra communication over cable runs up to 2,000 m and requires an 8.5-26 VDC power supply. Its contacts support loads up to 5 A at 30 VDC or 10 A at 110-230 VAC; the board measures 90 mm x 55 mm x 30 mm, weighs 84 g and installs in a separately available Ajax Case enclosure.

Key Features

  • Four independent relay outputs consolidate control of multiple circuits
  • Relay outputs can operate through configured Ajax automation scenarios
  • Optional steady contact state preserves relay positions after a power outage
  • Automatic temperature protection deactivates all relays if one exceeds 85 °C
  • Encrypted communication and device authentication protect the Fibra connection
24 MONTHS
Catalogue Family:
POWER SUPPLY
Product Line:
Superior
Relay Outputs:
4
Relay Modes:
Bistable and pulse
Pulse Operating Time:
1 second to 2 hours
Contact States:
Normally closed or normally open
Maximum Load Current:
5 A at 30 V DC; 10 A at 110-230 V AC
Main Power Supply:
8.5-26 V DC, up to 516 mW, powered by the hub
Communication Technology:
Fibra wired communication
Communication Range:
Up to 2,000 m with specified U/UTP cat.5 cable
Temperature Protection:
Over +85 deg C
Operating Temperature:
-10 DEG C TO +40 DEG C
Operating Humidity:
UP TO 75%
Dimensions:
90 x 55 x 30 mm
Weight:
84 g
Product Type:
POWER SUPPLY
Input Voltage Range:
8.5-26VDC
Type of Device:
4-CHANNEL RELAY MODULE
Output Number:
4
Features:
BISTABLE AND PULSE MODES
Power Source:
FIBRA HUB
