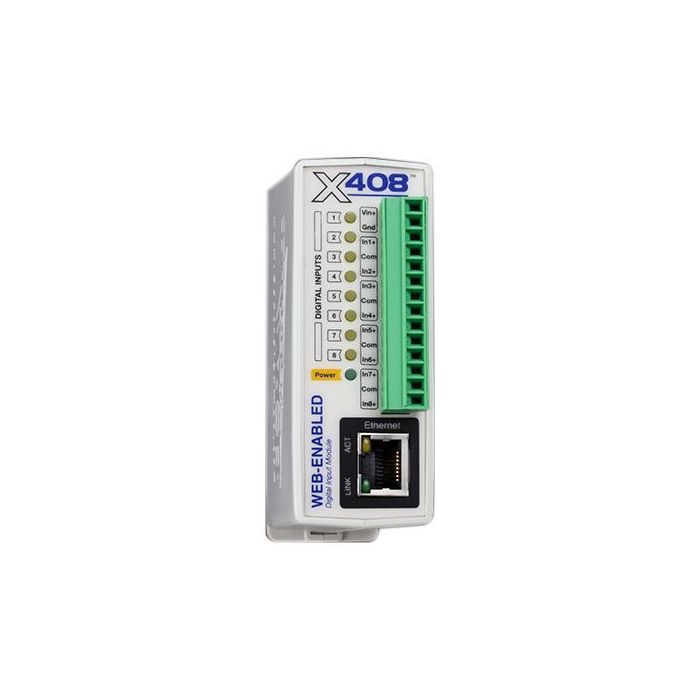

X-408-I ControlByWeb Web-Enabled Digital Input Module - 8 Inputs
X-408-I is a ControlByWeb web-enabled digital input monitoring module with eight optically isolated digital inputs. It supports discrete on/off, counter and frequency input configuration options, 10/100 Base-T Ethernet, and browser, mobile app and custom application monitoring.
Suitable for automation, security, water sensing, float switch, limit switch and counter monitoring applications over an IP network. The X-408-I is a 9-28 V DC powered model with DIN-rail or wall mounting and an industrial-style polycarbonate enclosure.
Key Features
- Eight isolated inputs support multi-point digital monitoring from one networked module.
- Configurable input functions cover status, counting, timing and frequency use cases.
- Web and protocol access enables monitoring without dedicated local software.
- Task builder, logging and alerts support practical automation workflows.
- DIN-rail or wall mount enclosure fits typical control cabinet installations.
- Catalogue Family:
- ACCESSORIES
- Product Type:
- Accessories
- Model:
- X-408-I
- Digital Inputs:
- 8 optically isolated inputs
- Input Voltage Range:
- 4-26 V DC
- Power Requirement:
- 9-28 V DC
- Network:
- 10/100 Base-T Ethernet
- Protocols:
- HTTP, HTTPS, SSL, XML, Modbus TCP/IP, SNMP, SMTP, Remote Services
- Connector:
- 14-position 3.81 mm removable terminal connector
- Operating Temperature:
- -40°C to 65.5°C
- Dimensions:
- 35.7 mm W x 98.5 mm H x 78 mm D
- Weight:
- 142 g
- Enclosure:
- Lexan 940 polycarbonate, UL94 V0
