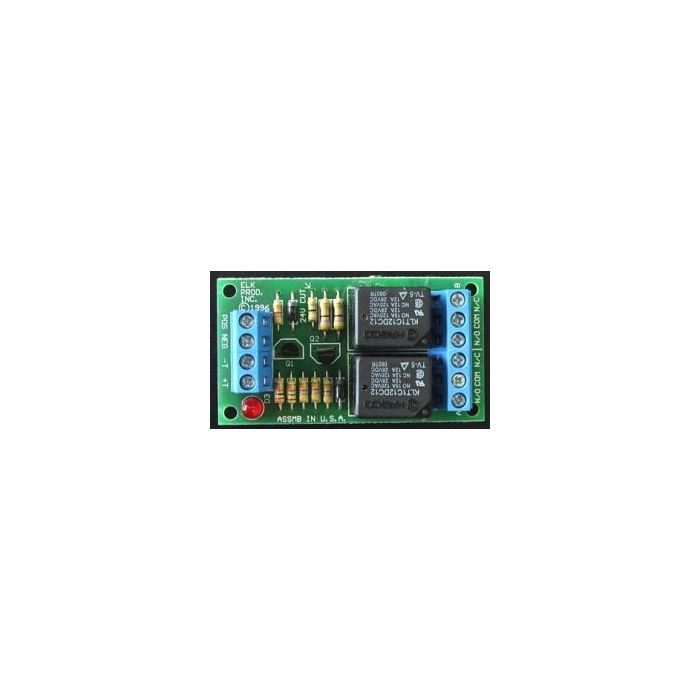

101-284 Ness-924 Sensitive Trigger Relay
The 101-284 is a 12 V or 24 V operation by jumper, LED trigger indication and two relay contact sets labelled Relay A and Relay B.
It is designed to convert low-current positive or negative trigger signals into dual relay outputs for alarm, access control and other low-voltage switching applications.
Key Features
- Accepts positive or negative trigger wiring for flexible control-panel integration.
- Dual relays energize simultaneously when triggered.
- LED indication helps installers confirm when the relay is triggered.
- 12 V or 24 V jumper reference supports use across common low-voltage control setups.
- Sensitive 1.2 mA trigger input supports low-current control outputs.
- Catalogue Family:
- ACCESSORIES & OTHERS
- Product Type:
- Accessories & Others
- Model Reference:
- Ness-924
- Trigger Inputs:
- Positive (+T) or negative (-T) trigger terminals
- Power Terminals:
- POS and NEG auxiliary power terminals
- Operating Voltage Reference:
- 12 V operation; jumper cut for 24 V operation
- Relay Contacts:
- Relay A and Relay B, COM/N/O/N/C shown
- Indicator:
- Red LED on when triggered
