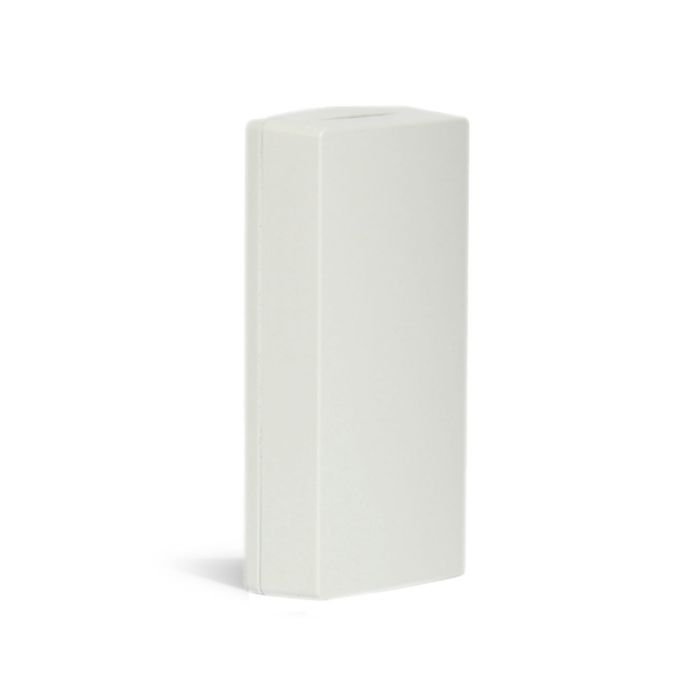

EN1212 Dual Input Universal Transmitter
The EN1212 is an Inovonics dual input universal transmitter for standard contacts or sensors that provide a contact closure. The primary alarm input is selectable for normally open or normally closed operation, while the secondary input is normally closed only.
It suits security installations that need two supervised contact inputs from a compact EchoStream wireless device. The EN1212 helps reduce wiring demands while keeping contact monitoring, case tamper and battery-powered operation within a single transmitter housing.
Key Features
- Brings two contact inputs into an EchoStream wireless security system
- Selectable primary input behaviour supports varied contact configurations
- Supervised operation helps keep both the transmitter and input state visible
- Case tamper protection supports better device integrity in the field
- Compact battery-powered format suits retrofit and distributed contact points
- Catalogue Family:
- ALARM / INTRUSION
- Market:
- North America, Australia and New Zealand
- Echostream Frequency:
- 902-928 MHz frequency hopping spread spectrum
- Dimensions:
- 3.5 x 1.7 x 0.9 in (8.9 x 4.3 x 2.3 cm)
- Weight:
- 1.9 oz (54 g)
- Typical Battery Life:
- 3-5 years
- Internal Battery Type:
- Panasonic CR123A
- External Contacts:
- Input one normally open or normally closed; input two normally closed
- External Contact Cabling:
- 14-22 gauge wire, unshielded
- Maximum Contact Distance:
- 10 ft (3 m) from external contact to transmitter
- Operating Temperature:
- -4 to 140 F (-20 to 60 C)
- Humidity:
- Up to 90% non-condensing
- Check-In Time:
- 3 minutes for EN1212
- Regulatory Compliance:
- FCC, ISED, RCM and RoHS for EN1212
- Product Type:
- Alarm / Intrusion
