AJANVR12V Ajax 12V PSU for NVR Low Voltage Power Supply

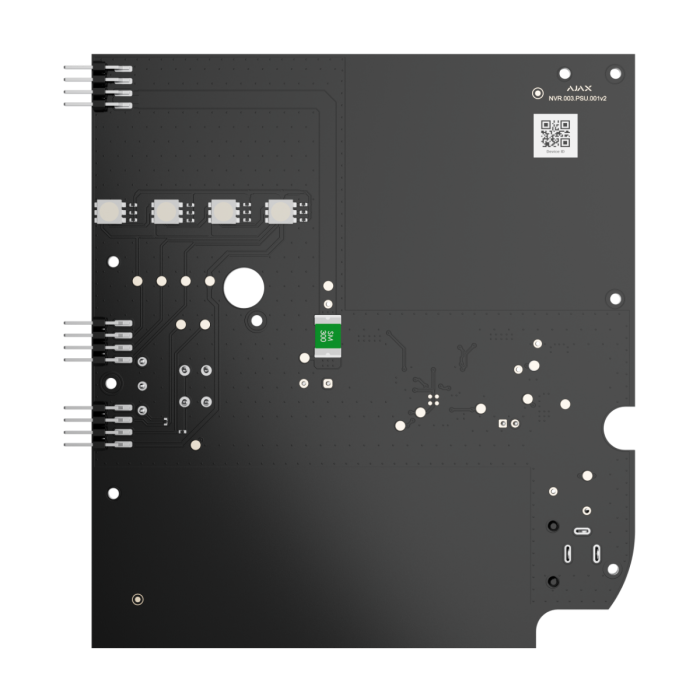

AJANVR12V is the Ajax 12V PSU for NVR, an internal power supply board that lets a compatible Ajax network video recorder operate from a low-voltage power source. It replaces the standard 110/230 V AC power supply unit inside the NVR enclosure.
The board is intended for professional installation where continuous video recording is needed despite unstable or unavailable mains power. Two operating modes support 8-16 V DC operation without a jumper or 12.1-16 V DC operation with a jumper for higher-voltage low-voltage sources.
Key Features
- Allows a compatible Ajax NVR to run from a low-voltage power source.
- Supports security video continuity in sites with unstable or unavailable mains power.
- Installs directly inside the NVR enclosure for an integrated conversion.
- Offers jumper-based operating modes to suit the input voltage range.
- Includes the terminal adapter required for the installation.
- Catalogue Family:
- NVR
- Compatibility:
- Ajax NVR 8-channel and NVR 16-channel
- Input Without Jumper:
- 8–16 V DC
- Input with Jumper:
- 12.1–16 V DC
- Maximum Input Current:
- Up to 4 A when maximum output current consumption is 2 A
- Nominal Output Voltage:
- 12 V DC ±3%
- Maximum Device Current Consumption:
- 2 A
- Quiescent Current Consumption:
- 65 mA
- Shutdown Current Consumption:
- 110 µA
- Installation Method:
- Inside the NVR enclosure
- Protection Class:
- IP20
- Operating Temperature:
- 0°C to +40°C
- Operating Humidity:
- Up to 75%
- Dimensions:
- 118 x 123 x 17 mm
- Weight:
- 51 g
- Product Type:
- NVR
