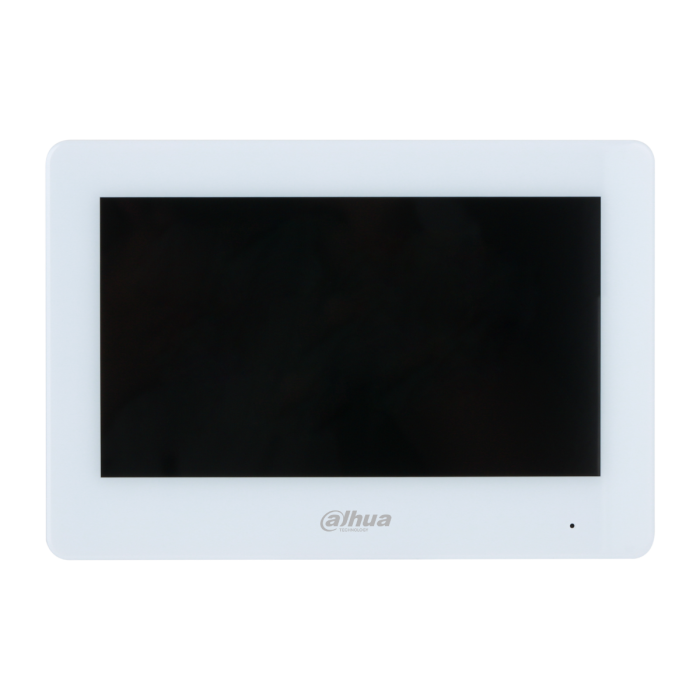

VTH5422HW-W 2-Wire IP and Wi-Fi Indoor Monitor - 7-inch White
The VTH5422HW-W is a Dahua 2-wire IP and Wi-Fi indoor monitor with a 7-inch TFT capacitive touchscreen and 1024 x 600 resolution. It supports digital 2-wire communication, Wi-Fi, two-way audio, door station monitoring and H.265/H.264 video decoding.
Designed for residential indoor intercom points, the surface-mount monitor provides a clear resident interface while supporting alarm input and output, door bell use and micro SD storage. Its white PC + ABS housing fits neatly into Dahua 2-wire IP installations.
Key Features
- Combines touch control and two-way audio for everyday resident use.
- Supports Wi-Fi and digital 2-wire communication for flexible indoor placement.
- Enables door station and IPC viewing from a compact wall-mounted screen.
- Supports local intercom functions with reserved micro SD storage.
- Helps integrate alarm and door bell functions into the indoor monitor point.
- Catalogue Family:
- INTERCOM
- Model:
- DHI-VTH5422HW-W
- Product Type:
- Intercom
- Display:
- 7-inch TFT capacitive touchscreen
- Resolution:
- 1024 x 600
- Communication Mode:
- Digital 2-wire
- Wi-Fi Frequency:
- 2412-2472 MHz
- Storage:
- micro SD card up to 64 GB
- Alarm Input:
- 6 channels
- Alarm Output:
- 1 channel
- Power Supply:
- 48 VDC 1.25 A
- Material:
- Plastic
- Colour:
- White
- Installation:
- Surface mount
- Dimensions:
- 189.0 x 130.0 x 26.9 mm
- Operating Temperature:
- -10 C to +55 C
- Power Consumption:
- Standby up to 2 W; working up to 6 W
