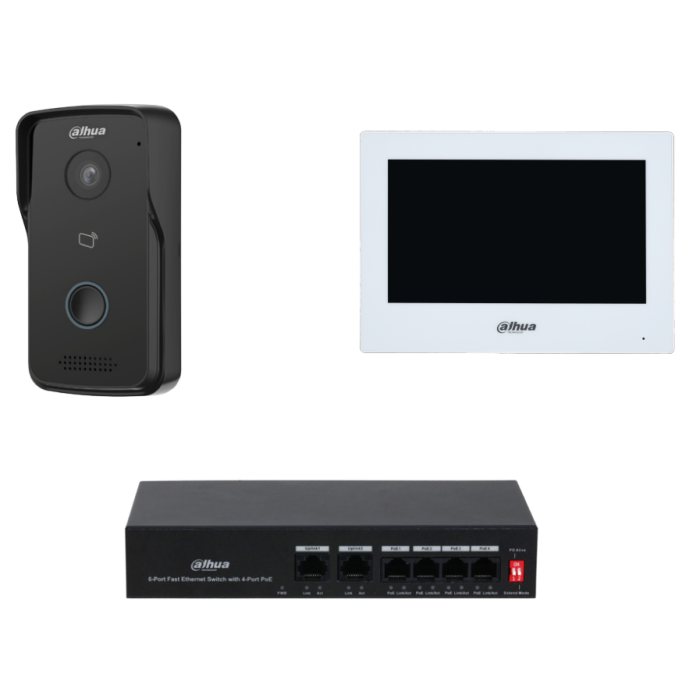

KTP03W-S2 IP Video Intercom Kit with 7 Inch Monitor Door Station and PoE Switch
The KTP03W-S2 is a Dahua IP video intercom kit built around a 7 inch capacitive touchscreen indoor monitor, a villa door station and a PoE switch. It provides a 1024 x 600 monitor screen, two-way audio, 6 alarm inputs, 1 alarm output, standard PoE and Micro SD storage up to 64 GB reserved for software.
The kit suits villa and small-site intercom installations that need a surface-mounted monitor, a one-button door station with WDR and IP65 protection, and a 4-port PoE switch for system connection. Quick configuration without computers and standard PoE support help simplify deployment.
Key Features
- Kit structure brings the core monitor, door station and PoE switch together
- 7 inch touchscreen gives users a clear indoor intercom interface
- Door station WDR and auto IR help support visitor visibility at entrances
- Standard PoE support helps reduce separate power requirements
- Four-port PoE switch supports a compact and organised system connection point
- Catalogue Family:
- INTERCOM
- Model:
- DHI-KTP03W-S2
- Indoor Monitor Display:
- 7 inch TFT capacitive touchscreen, 1024 x 600
- Indoor Monitor Power:
- 12 VDC 1 A; standard PoE 36-57 V, 0.35 A
- Indoor Monitor Dimensions:
- 189.6 x 134.6 x 26.0 mm
- Door Station Camera:
- 2.0 mm focal length; 120 dB WDR
- Door Station Protection:
- IP65 with silicone sealant as specified
- Door Station Dimensions:
- 135 x 70.4 x 34.4 mm
- Switch Ports:
- 4 PoE ports and 2 uplink ports, 10/100 Mbps Base-TX
- Switch Power Supply:
- 100-240 VAC
- Switch Dimensions:
- 194.0 x 108.1 x 35.0 mm
- Product Type:
- Intercom
