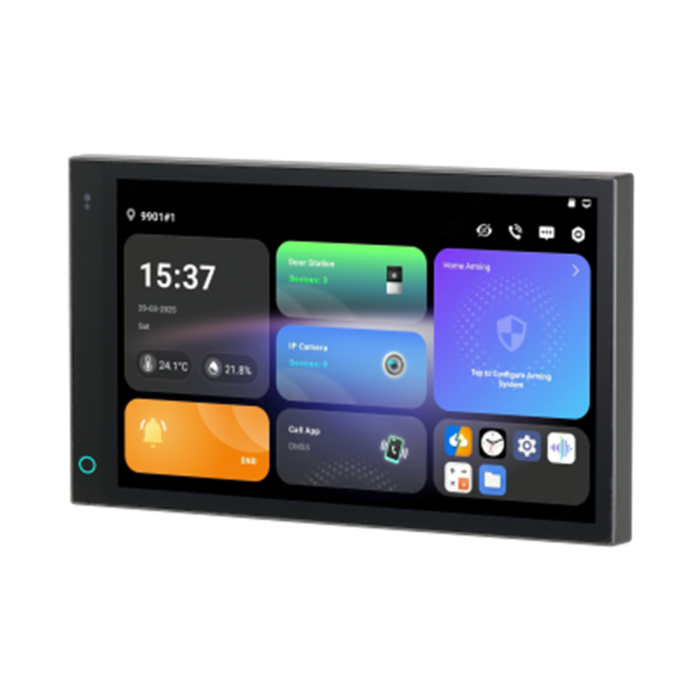

SCP3022A-B 2-Wire IP Smart Control Panel - 7-inch
The SCP3022A-B is a Dahua 2-wire IP smart control panel with Android 14 and a 7-inch capacitive touchscreen at 1024 x 600 resolution. It supports full digital communication, video intercom, video monitoring and wireless alarm functions from an indoor control point.
The flush-mount panel is suited to villas, communities, apartments, hotels and office settings that need a compact intercom and smart control interface. It includes Wi-Fi, micro SD storage support up to 512 GB, alarm input/output and a PC + ABS housing.
Key Features
- Combines intercom, monitoring and smart control functions in one indoor panel.
- Uses Android 14 to support a modern control-panel operating environment.
- Provides a compact 7-inch touchscreen for day-to-day resident interaction.
- Supports Wi-Fi and wired network connectivity for Dahua system integration.
- Fits flush-mounted indoor projects that need a cleaner wall finish.
- Catalogue Family:
- INTERCOM
- Model:
- DHI-SCP3022A-B
- Product Type:
- Intercom
- Operating System:
- Android 14
- Display:
- 7-inch capacitive touchscreen
- Resolution:
- 1024 x 600
- Communication Mode:
- Full digital
- Storage:
- micro SD card up to 512 GB
- Alarm Input:
- 8 channels
- Alarm Output:
- 1 channel
- Network Ports:
- 1 x 10/100 Mbps Ethernet
- Power Supply:
- 48 VDC 0.5 A; Standard PoE
- Material:
- Plastic
- Colour:
- Grey
- Installation:
- Flush mount
- Dimensions:
- 176.2 x 103.1 x 32.2 mm
- Operating Temperature:
- -10 C to +55 C
- Power Consumption:
- Standby up to 10 W; working up to 14 W
