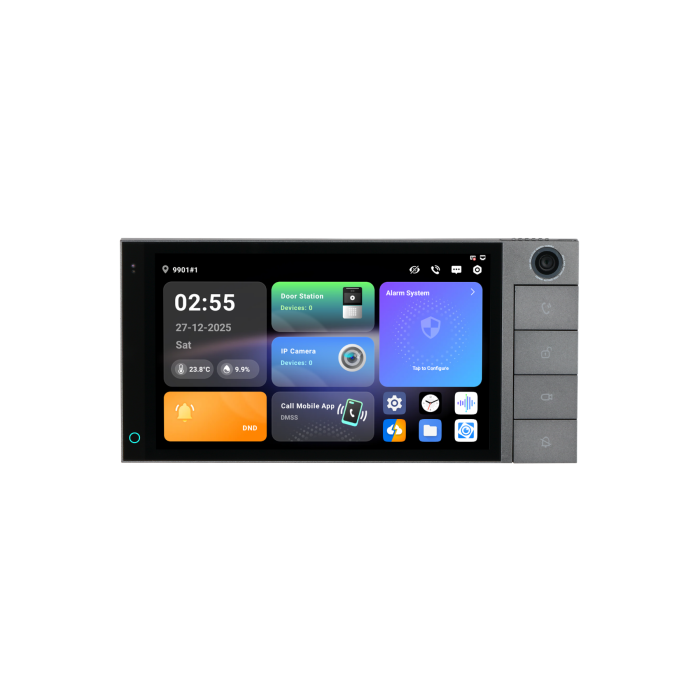

SCP3022B-CBZ-S 7 Inch Android 14 2-wire IP Intercom Monitor with Wi-Fi
The SCP3022B-CBZ-S is a Dahua 2-wire IP video intercom monitor with Android 14, a 7 inch capacitive touchscreen and 1024 x 600 resolution. It provides full digital/digital 2-wire communication, Wi-Fi, two-way audio, built-in speaker, 8 alarm inputs, 1 alarm output and standard PoE.
It is designed for villas, communities, apartments, hotels and offices where an indoor control screen is needed for video intercom, monitoring and alarm functions. Mechanical buttons, removable button functions and a stated camera field of view support more interactive indoor control. Surface mounting, PC + ABS casing and grey appearance support a neat indoor installation.
Key Features
- Android 14 platform supports a modern intercom control interface
- 7 inch touchscreen gives residents a clear point for calls and monitoring
- IP, Wi-Fi and 2-wire communication modes support flexible system design
- Alarm inputs and output help the monitor participate in wider security functions
- Slim surface-mounted body keeps the indoor installation tidy
- Catalogue Family:
- INTERCOM
- Model:
- DHI-SCP3022B-CBZ-S
- Operating System:
- Android 14
- Display:
- 7 inch capacitive touchscreen
- Screen Resolution:
- 1024 x 600
- Communication Mode:
- Full digital; digital 2-wire
- Network:
- 1 x 10/100 Mbps Ethernet; Wi-Fi 2.4 GHz
- Alarm Input/Output:
- 8 inputs / 1 output
- Power Supply:
- 48 VDC, 0.5 A; standard PoE
- Dimensions:
- 210.2 x 103.1 x 18.6 mm
- Power Consumption:
- 8W or less standby; 13W or less working
- Gross Weight:
- 0.88 kg
- Product Type:
- Intercom
