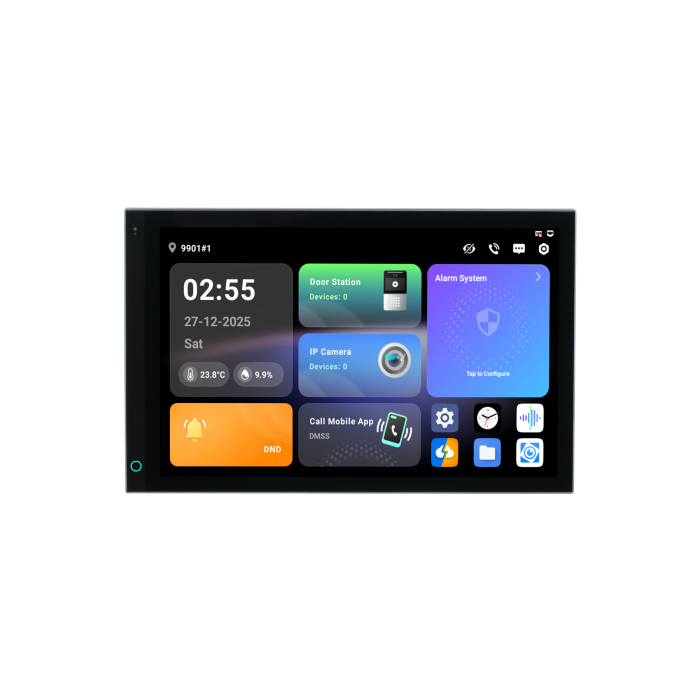

SCP3042A-BZ-S 2-Wire IP Smart Control Panel - 10.1-inch
The SCP3042A-BZ-S is a Dahua 2-wire IP smart control panel with Android 14, 4 GB RAM and 16 GB ROM. It uses a 10.1-inch IPS capacitive touchscreen with 1280 x 800 resolution and supports full digital, digital 2-wire, IP, Wi-Fi and IP 2-wire communication.
Built for indoor residential and commercial intercom control, the surface-mount panel combines multi-colour status indication, proximity wake-up and micro SD storage support. Its PC + ABS housing and larger display make it suitable for visitor, alarm and system interaction from one wall-mounted interface.
Key Features
- Provides a larger touch interface for intercom, monitoring and smart control tasks.
- Supports multiple communication paths for flexible Dahua system design.
- Uses status indicators and proximity wake-up to improve everyday resident interaction.
- Allows local storage expansion for supported intercom functions.
- Suits indoor projects that need a surface-mounted control panel with a broad display area.
- Catalogue Family:
- INTERCOM
- Model:
- DHI-SCP3042A-BZ-S
- Product Type:
- INTERCOM
- Operating System:
- Android 14
- Memory:
- 4 GB RAM + 16 GB ROM
- Display:
- 10.1-INCH IPS CAPACITIVE TOUCHSCREEN
- Resolution:
- 1280 X 800
- Communication Mode:
- Full digital; digital 2-wire; IP; Wi-Fi; IP 2-wire
- Storage:
- micro SD card up to 512 GB
- Alarm Input:
- 8 channels
- Network Ports:
- 1 X 10/100 MBPS ETHERNET
- Material:
- PLASTIC
- Colour:
- GREY
- Installation:
- Surface mount
- Dimensions:
- 246.5 x 156.1 x 19.4 mm
- Operating Temperature:
- -10 C TO +55 C
- Power Consumption:
- STANDBY UP TO 10 W; WORKING UP TO 13 W
- Certification:
- CE
