TIM01 Digital Timer Board - 8 Field-Programmable Functions

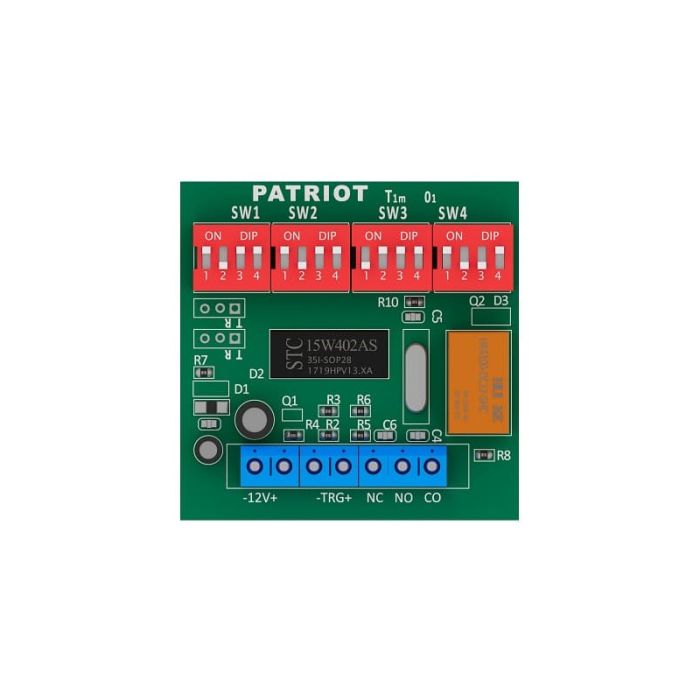

The TIM01 is a digital timer board designed to provide eight field-programmable functions. It operates an SPDT relay and offers adjustable timing intervals from 1 second to 99 days, with power LED, relay operation LED, mode switches, timing switches and terminal block layout shown in the product information.
It suits automation and access-control style applications where a compact board is needed to manage timed relay operation. The small 50 x 50mm format and 12V DC operating range make it practical for integration into low-voltage control enclosures.
Key Features
- Provides flexible timing control through eight programmable functions.
- Supports long or short timing windows from seconds through to days.
- Keeps relay timing hardware compact for enclosure installation.
- Gives technicians local visual feedback from power and relay LEDs.
- Fits low-voltage control work using the 12V DC input range.
- Catalogue Family:
- ACCESSORIES & OTHERS
- Model:
- TIM 01
- Input Voltage:
- 12V DC - 13.8V DC
- Standby Current:
- 15mA at 12V DC
- Operation Current:
- 35mA at 12V DC
- Relay Rating:
- 3A at 250V AC / 30V DC
- Timing Interval:
- 1 second to 99 days
- Relay Type:
- SPDT
- Size:
- 50 x 50mm
- Product Type:
- Accessories & Others
