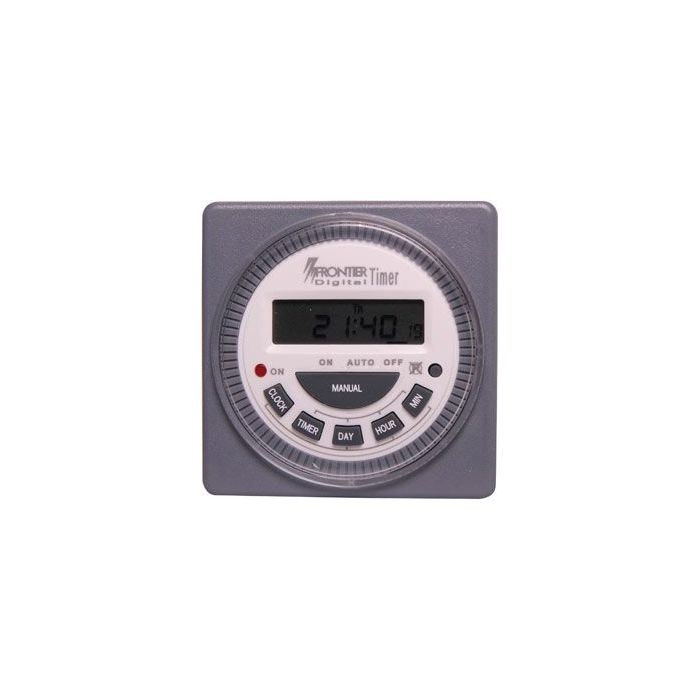

S0049 24 Hour 7 Day Digital Timer - 12VDC 8 Interval
The S0049 is a panel-mount digital timer with a 12V DC supply, 24-hour and 7-day programming, up to 8 ON/OFF events per day, 15 programmable day combinations, and manual ON, AUTO and OFF operating modes.
It is designed for low-voltage control applications requiring scheduled switching across daily or weekly programs.
Key Features
- 24-hour and 7-day programming for flexible scheduling
- Up to 8 ON/OFF events per day
- 15 programmable day combinations
- Manual ON, AUTO and OFF operating modes
- Panel-mount design for permanent installation
- Catalogue Family:
- POWER SUPPLY
- Product Type:
- Power Supply
- Series:
- TM-619
- Supply Voltage:
- 12V DC
- Scheduling:
- 24 hour / 7 day
- Events:
- Up to 8 ON/OFF events per day
- Day Combinations:
- 15 combinations
- Manual Modes:
- ON, AUTO and OFF
- Contact Rating:
- 16A at 30V DC
