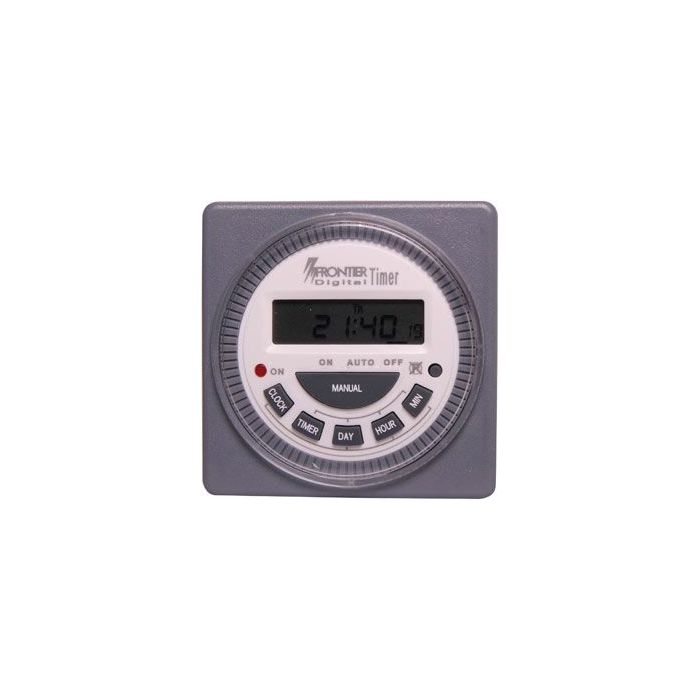

S0051 24 Hour 7 Day Digital Timer - 240V 8 Interval
The S0051 is a panel-mount digital timer with a 240 V AC supply, 24-hour and 7-day programming, second-level time accuracy, and up to eight ON/OFF switching events per day. It also provides 15 day-combination programs and manual ON, AUTO, and OFF operating modes.
Suitable for scheduled switching and automation applications, the timer supports recurring weekly schedules, program review and editing, and includes an in-built lithium battery to retain programmed settings during power interruptions.
Key Features
- Supports up to eight ON and eight OFF switching events per day.
- 15 programmable day combinations for flexible weekly scheduling.
- Second-level timing accuracy for precise switching control.
- Program review and editing functions simplify schedule changes.
- In-built lithium battery retains programmed settings during power loss.
- Catalogue Family:
- BATTERY
- Product Type:
- Battery
- Supply Voltage:
- 240 V AC
- Scheduling:
- 24-hour / 7-day
- Programs:
- Up to 8 ON and 8 OFF events
- Day Combinations:
- 15 combinations
- Clock Format:
- 24-hour
- Contact Rating:
- 8 A at 240 V AC
