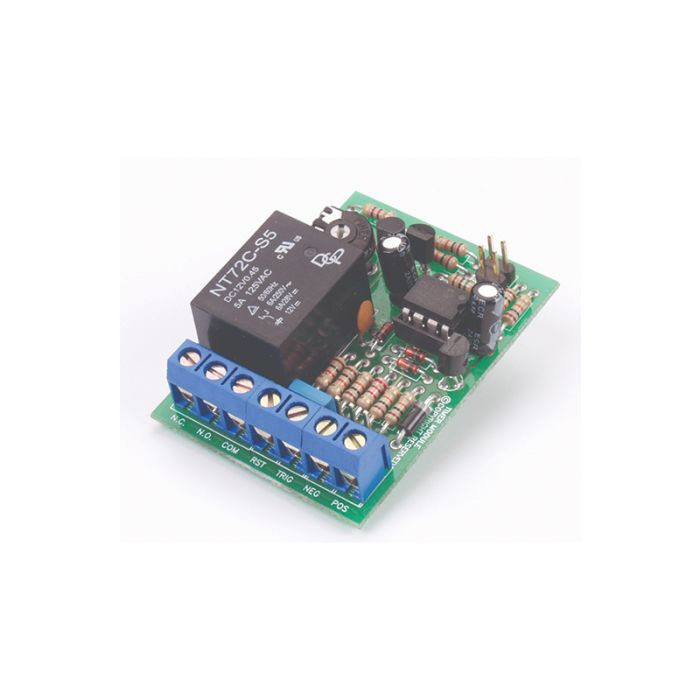

RRC3030 Universal Versatile Timer Module
RRC3030 is a universal timer module with configurable operating modes including versatile timer, delay timer, re-triggerable timer and positive-trigger-only timer functions.
It operates from a 12VDC supply and features positive or negative trigger input, a positive reset input, and an adjustable timing range from 2 seconds to 3 hours for security and access control timing applications.
Key Features
- Configurable timer modes support a variety of timing applications.
- Adjustable timing range from 2 seconds to 3 hours.
- Positive or negative trigger input provides flexible activation options.
- Normally open and normally closed relay contacts support varied control wiring.
- EEPROM-saved mode selection retains the configured timer mode after power removal.
- Catalogue Family:
- POWER SUPPLY
- Product Type:
- Power Supply
- Power Supply:
- 12VDC
- Standby Current:
- 5.7mA
- Trigger Input:
- Positive or negative
- Reset Input:
- Positive reset input
- Timing Range:
- 2 seconds to 3 hours
- Relay Contacts:
- Normally open and normally closed, 5A at 12VDC
- Physical Size:
- 54 mm x 39 mm
- Factory Setting:
- Versatile Timer
