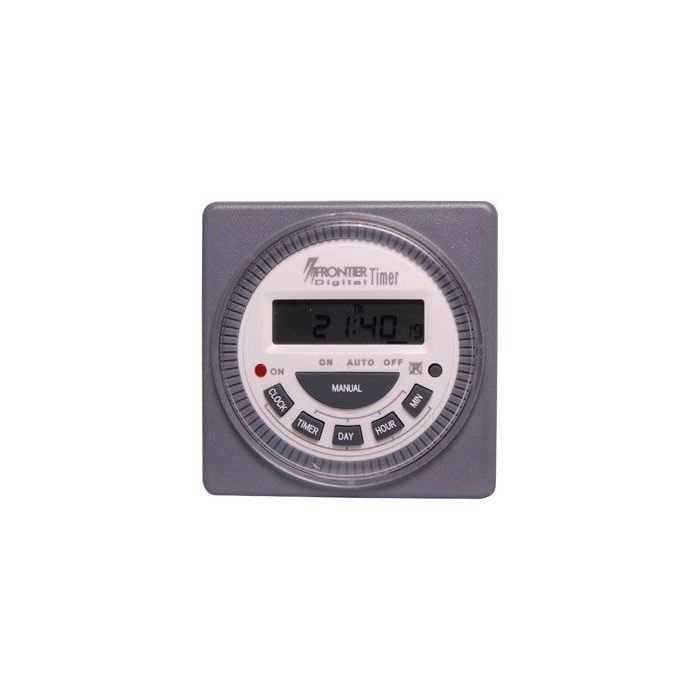

S0050 24 Hour 7 Day Digital Timer - 24 V DC 8 Interval
The S0050 is a panel-mount digital timer with a 24 V DC supply, supporting 24-hour and 7-day scheduling with up to eight ON/OFF switching events per day. It features 15 programmable day combinations, clock programming, and manual ON, AUTO, and OFF operating modes.
Designed for scheduled switching and control applications, the timer provides flexible daily and weekly programming for low-voltage automation and equipment control systems.
Key Features
- Supports up to eight ON/OFF switching events per day
- 15 programmable day combinations for flexible weekly scheduling
- Manual ON, AUTO, and OFF operating modes for convenient control
- Panel-mount design for equipment and control panel installation
- Clock programming with memory function for repeatable schedules
- Catalogue Family:
- POWER SUPPLY
- Product Type:
- Power Supply
- Supply Voltage:
- 24 V DC
- Scheduling:
- 24-hour / 7-day
- Programming Capacity:
- Up to 8 ON/OFF events per day
- Day Combinations:
- 15 combinations
- Manual Operating Modes:
- ON, AUTO, OFF
- Contact Rating:
- 16 A at 30 V DC or 8 A at 240 V AC
