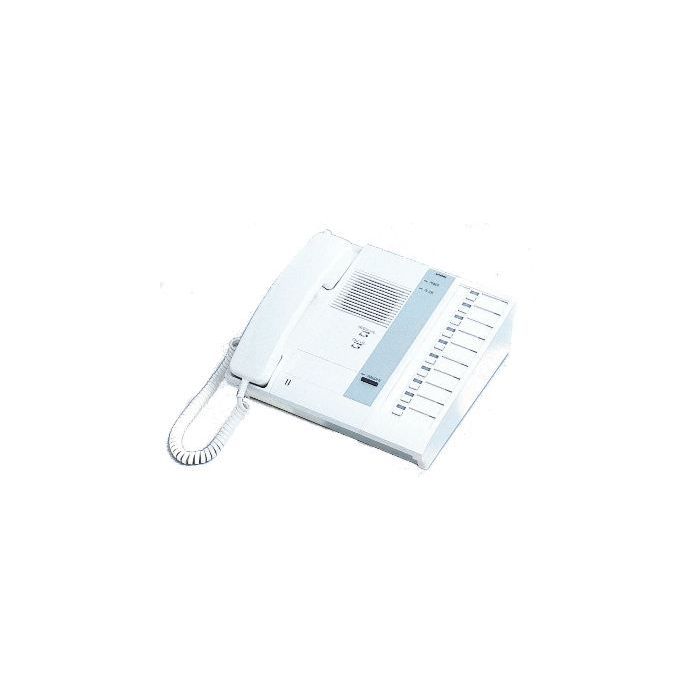

TC-10M Aiphone 10-Call Master Station - Tone and LED Annunciation
The TC-10M is an Aiphone 10-call master station designed for handset simultaneous communication with up to 10 sub stations. It features station selector buttons, a directory card, call-in LED, in-use LED, power-on LED, and handset controls for receive and call volume.
It is suitable for TC system installations requiring desktop or wall-mounted master-station communication with connected TB-SE sub stations. The station supports transferring a call from one sub station to another and provides three-level adjustment for handset receiver and call-tone volume.
Key Features
- Ten-call station capacity supports selective communication across multiple sub stations.
- Handset simultaneous communication provides a private calling method.
- LED indicators and a directory card help operators monitor station activity.
- Desktop or wall-mounting options support different installation layouts.
- Transfer function allows a sub-station call to be directed to another connected sub station.
- Catalogue Family:
- INTERCOM
- Model:
- TC-10M
- Product Type:
- Intercom
- Power Source:
- DC 18 V, 350 mA using PS-1820S/UL, or AC 15-16 V, 50/60 Hz, 750 mA
- Power Consumption:
- 6 W maximum; 3 W standby
- Communication:
- Handset simultaneous communication
- Station Capacity:
- 10 sub stations
- Call Tone:
- Electronic tremolo for sub, door station and master station
- Mounting:
- Desktop or wall-mounting
- Electrical Box:
- 2-gang box
- Housing:
- Front panel: fire-retardant ABS plastic; chassis: ordinary sheet steel
- Weight:
- Approx. 2.3 kg
- Colour:
- White/Grey
- Functions:
- Call and communication with TB-SE sub station; call transfer between sub stations
