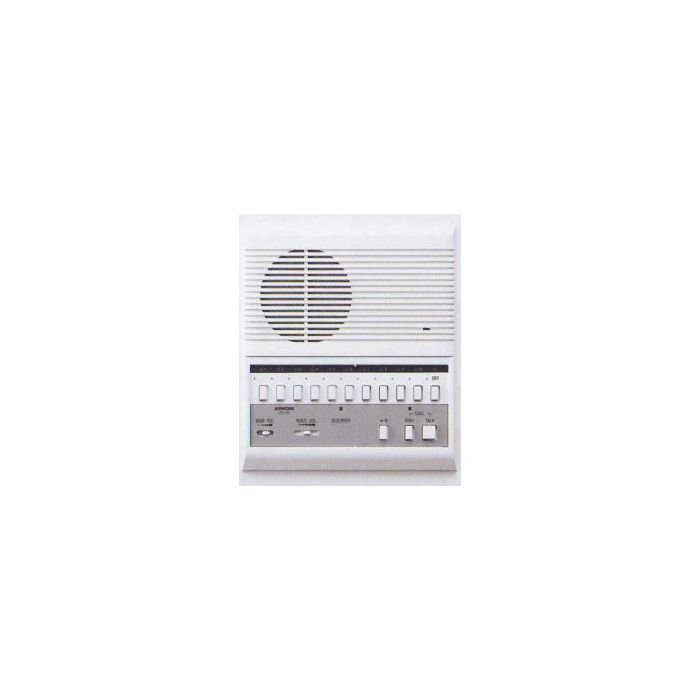

LEF-10 Aiphone LEF Series 10-Call Audio Master Station
The LEF-10 is an Aiphone LEF Series 10-call audio master station for communication, paging and entry security systems. It is a surface-mount master station with selective door release and support for push-to-talk and hands-free station communication within the LEF system.
It suits offices, reception desks and facility entry points where multiple door, master and sub stations need to be mixed into one audio intercom solution. The 10-call capacity gives the station a larger system role than the smaller LEF models while retaining 12V DC operation and LEF wiring guidance.
Key Features
- Handles larger LEF audio intercom layouts with 10 call points.
- Selective door release supports controlled entry once a visitor has been.
- LED and call-tone indication help identify which door or sub station is calling.
- Push-to-talk and hands-free station behaviour supports clear everyday operation.
- Surface-mounted master format suits desks, counters and wall-mounted control points.
- Catalogue Family:
- INTERCOM
- Model:
- LEF-10
- Product Type:
- Intercom
- Series:
- Aiphone LEF Series
- Mounting:
- Surface Mount
- Power Source:
- 12V DC, 300 mA per active master station - use PS-1225UL
- Output:
- 800 mW at 20 ohm receive; 500 mW at 20 ohm transmit
- Wiring Distance:
- Door/sub station to farthest master station: 650 ft with 22 AWG or 1,600 ft with 18 AWG
- Standard Wiring:
- LEF-10 uses 822220, 22 AWG, 20-conductor overall shield cable in the LEF wiring table
- Dimensions:
- 8-1/8 in H x 7-1/2 in W x 2-3/16 in D
