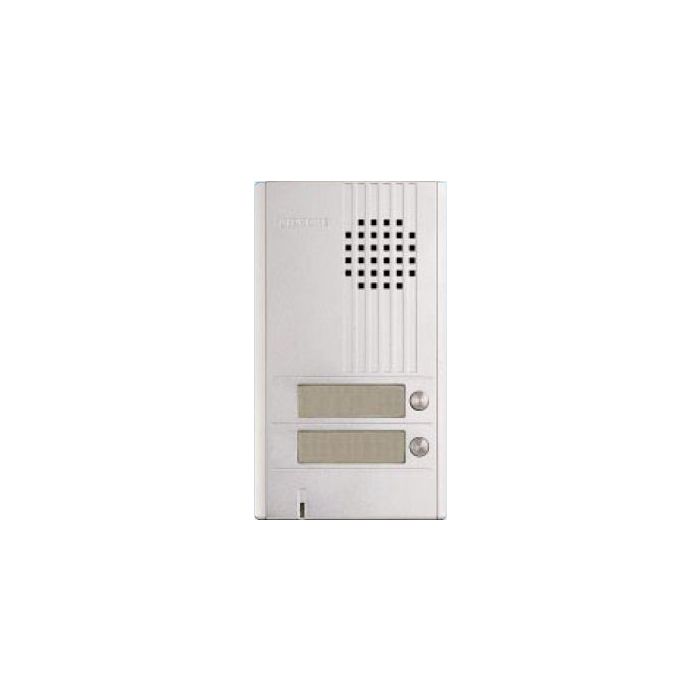

DA-2DS Aiphone DA Series 2-call Surface Door Station - Silver
The DA-2DS is an Aiphone DA Series 2-call door station for a two-wire electric-lock door phone installation. It is designed for use with DA-1MD apartment stations and PT-1211 power supplies.
It supports residential entry applications requiring door-station calling, room-station communication and optional door release.
Key Features
- 2-call station format supports separate visitor call points from one door station panel.
- Compatible with DA-1MD room stations in DA Series installations.
- Door-release terminals support connection to compatible door release equipment.
- Compact dimensions support straightforward residential entrance installation.
- Supports connection of a call-extension sounder for additional audible notification.
- Catalogue Family:
- INTERCOM
- Model:
- DA-2DS
- Product Type:
- Intercom
- System:
- DA two-wire electric-lock door phone
- Related Room Station:
- DA-1MD
- Power Source:
- AC 15 V supplied from power supply
- Ambient Temperature:
- -10 deg C to +60 deg C (+14 deg F to +140 deg F)
- Dimensions:
- 175 mm H x 100 mm W x 22 mm D
- Weight:
- Approx. 270 g
- Door Release Terminals:
- L, L for door release
- Room Station Terminals:
- D, E for DA-1MD
