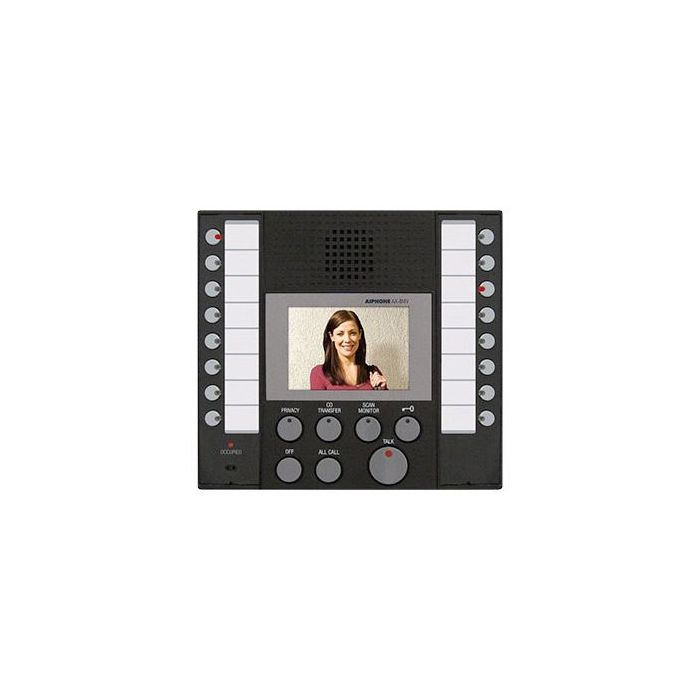

AX8MV Aiphone AX-8MV Video Master Station
The AX8MV is an Aiphone AX-8MV audio video master station for AX Series intercom systems. It provides a 3.5 inch colour LCD monitor, 24V DC power from the CEU, open-voice hands-free communication, headset jacks and RJ45 wiring connection.
It suits AX systems where operators need both communication and video monitoring at the master station. CAT-5e homerun wiring, desk or wall mounting and calling capacity up to 120 door/sub stations support structured multi-entry video intercom control.
Key Features
- Audio video master station adds visual monitoring to AX system control
- 3.5 inch colour LCD helps operators identify visitors at the station
- Hands-free communication can operate by VOX or push-to-talk
- RJ45 CAT-5e connection supports structured system wiring
- Desk or wall mounting gives flexibility for operator locations
- Catalogue Family:
- INTERCOM
- Model:
- AX-8MV
- Power Source:
- 24V DC SUPPLIED FROM CEU
- Communication:
- OPEN VOICE HANDS-FREE, VOX OR PUSH-TO-TALK
- Video Monitor:
- 3.5 inch direct-view TFT colour LCD
- Scanning Lines:
- 525 lines
- Video Output:
- NTSC STANDARD 1VPP
- Headset Jack:
- 3.5 mm mic and speaker jacks
- Calling Capacity:
- Up to 7 additional master stations; up to 120 door/sub stations
- Mounting:
- DESK WITH FLIP-UP STANDS OR WALL MOUNT
- Wiring:
- CAT-5E HOMERUN TO CEU
- Wiring Connection:
- RJ45 jack
- Housing:
- ABS resin
- Colour:
- BLACK
- Operating Temperature:
- 0 DEG C TO 40 DEG C
- Dimensions:
- 175 x 194 x 48 mm
- Weight:
- 550 g
- Product Type:
- INTERCOM
- Series:
- AX SERIES
