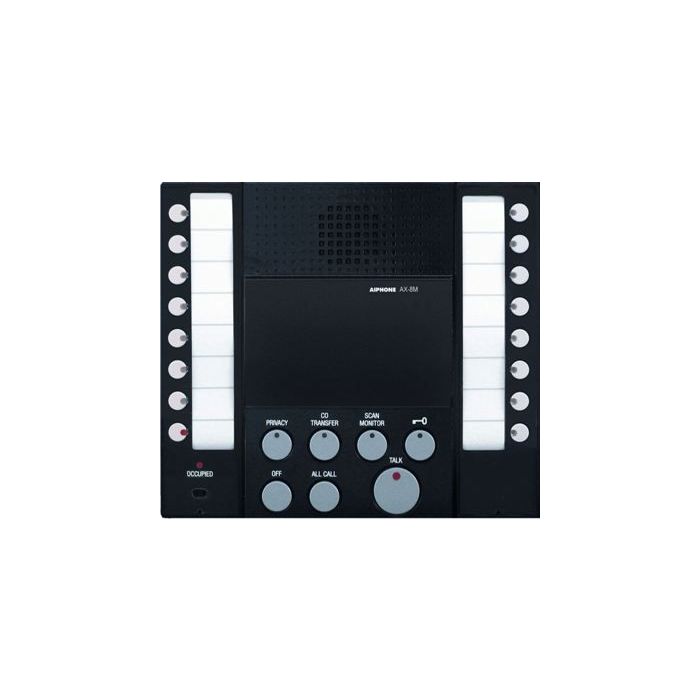

AX8M Aiphone AX-8M Audio Master Station - Black
The AX8M is an Aiphone AX-8M audio master station for AX Series intercom systems. It provides 24V DC power from the CEU, open-voice hands-free communication, door and master station selector buttons, headset jacks and RJ45 wiring connection.
It suits AX systems where a black desk or wall-mounted audio master station is needed to manage door or sub station communication. CAT-5e homerun wiring to the CEU and calling capacity up to 120 door/sub stations support structured multi-entry installations.
Key Features
- Audio master station supports AX Series door and sub station control
- Hands-free communication can operate by VOX or push-to-talk
- Desk or wall mounting gives flexibility for control locations
- RJ45 CAT-5e connection supports structured system wiring
- Selector LEDs and volume controls help operators manage calls clearly
- Catalogue Family:
- INTERCOM
- Model:
- AX-8M
- Power Source:
- 24V DC supplied from CEU
- Communication:
- Open voice hands-free, VOX or push-to-talk
- Call Tone:
- Tremolo ring tone and blinking LED
- Headset Jack:
- 3.5 mm mic and speaker jacks
- Calling Capacity:
- Up to 7 additional master stations; up to 120 door/sub stations
- Mounting:
- Desk with flip-up stands or wall mount
- Wiring:
- CAT-5e homerun to CEU
- Wiring Connection:
- RJ45 jack
- Housing:
- ABS resin
- Colour:
- Black
- Operating Temperature:
- 0 deg C to 40 deg C
- Dimensions:
- 175 x 194 x 48 mm
- Weight:
- 450 g
- Product Type:
- Intercom
