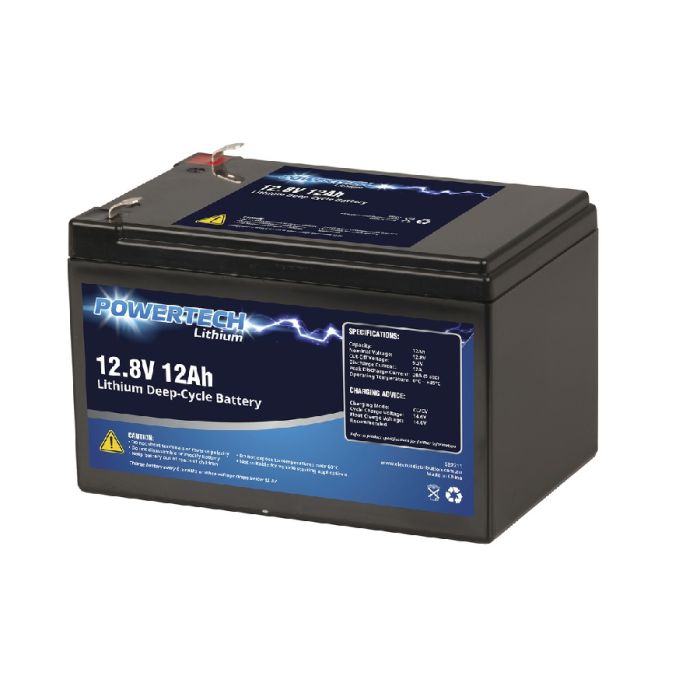

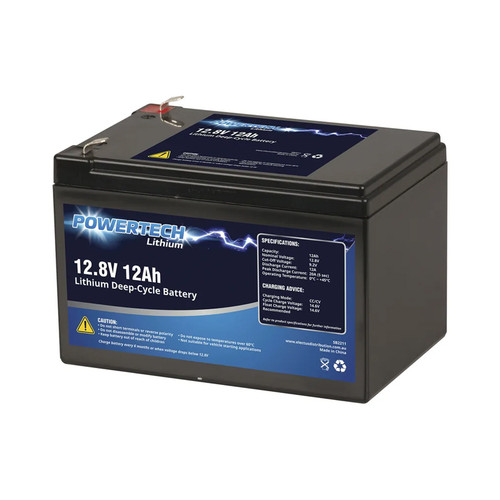

SB2211 12.8V 12Ah LiFePO4 Battery
SB2211 is a 12.8V 12Ah LiFePO4 deep-cycle battery with passive protection for over-charge, over-discharge, temperature protection, and cell balancing.
Suitable as a replacement for compatible lead-acid battery applications. Features T1 terminals, 153.6Wh energy capacity, and specified charge and discharge ratings.
Key Features
- 12.8V 12Ah LiFePO4 deep-cycle battery.
- Passive protection for over-charge, over-discharge, temperature, and cell balancing.
- Lightweight design.
- 153.6Wh energy capacity.
- T1 terminals with a compact case size.
- Catalogue Family:
- BATTERY
- Product Type:
- Battery
- Product Model:
- SB2211
- Normal Voltage:
- 12.8V
- Rated Capacity:
- 12 +/- 1Ah at 0.2C discharge rate
- Energy Capacity:
- 153.6Wh
- Charge Voltage:
- 14.6V
- Standard Cutoff Voltage:
- 9.2V
- Recommended Charge Current:
- Up to 12A
- Discharge Current:
- 12A
- Peak Discharge Current:
- Up to 20A for 5 sec
- Battery Terminal:
- T1
- Weight:
- 1.5 +/- 0.1 kg
- Size:
- 151(L) x 99(W) x 95(H) mm
