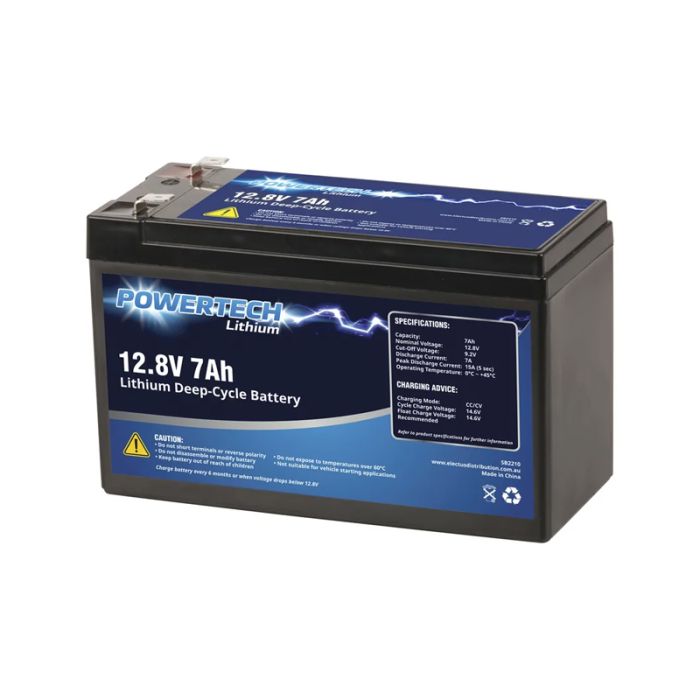

1270LITH SB2210 12.8 V 7 Ah LiFePO4 Battery
1270LITH is an SB2210 12.8 V 7 Ah LiFePO4 battery with 84 Wh energy capacity, 14.6 V charge voltage, 7 A discharge current and peak discharge current up to 15 A for 5 seconds. It uses T1 terminals and measures 151 mm x 65 mm x 95 mm.
It suits compact deep-cycle or standby power applications where lithium iron phosphate chemistry is required in a 7 Ah class format. Passive protection features include over-charge, over-discharge, temperature protection and balanced function.
Key Features
- Provides compact LiFePO4 storage in a 12.8 V 7 Ah format.
- Helps reduce battery weight with a 0.81 kg specification.
- Supports protected lithium battery operation through BMS functions.
- Gives specifiers clear size and terminal data for enclosure planning.
- Keeps recharge and discharge values clear for battery selection.
- Catalogue Family:
- BATTERY
- Product Model:
- SB2210
- Normal Voltage:
- 12.8 V
- Rated Capacity:
- 7 +/- 0.5 Ah (C5)
- Energy Capacity:
- 84 Wh
- Charge Voltage:
- 14.6 V
- Discharge Current:
- 7 A
- Peak Discharge Current:
- Up to 15 A for 5 seconds
- Size:
- 151 mm (L) x 65 mm (W) x 95 mm (H)
- Weight:
- 0.81 kg
- Product Type:
- Battery
