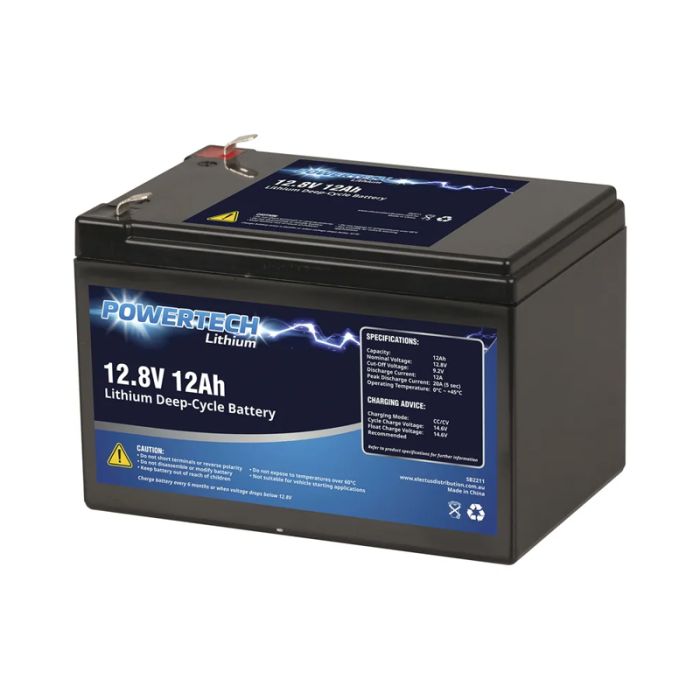

1212LITH SB2211 12.8 V 12 Ah LiFePO4 Battery
The 1212LITH is an SB2211 LiFePO4 battery rated at 12.8V with a 12Ah capacity and 153.6Wh energy capacity. It features a 14.6V charge voltage, 12A continuous discharge current, peak discharge current up to 20A for 5 seconds, T1 terminals, and dimensions of 151mm x 99mm x 95mm.
Suitable for deep-cycle and standby power applications, the battery includes over-charge, over-discharge, temperature protection, and cell balancing functions.
Key Features
- 12.8V 12Ah LiFePO4 battery with 153.6Wh energy capacity.
- 14.6V charge voltage with 12A continuous discharge current.
- Peak discharge current up to 20A for 5 seconds.
- Integrated over-charge, over-discharge, temperature protection, and cell balancing functions.
- T1 terminals with 151mm x 99mm x 95mm dimensions.
- Catalogue Family:
- BATTERY
- Product Model:
- SB2211
- Normal Voltage:
- 12.8 V
- Rated Capacity:
- 12 +/- 1 Ah at 0.2 C discharge rate
- Energy Capacity:
- 153.6 Wh
- Charge Voltage:
- 14.6 V
- Discharge Current:
- 12 A
- Peak Discharge Current:
- Up to 20 A for 5 seconds
- Size:
- 151 mm (L) x 99 mm (W) x 95 mm (H)
- Weight:
- 1.5 +/- 0.1 kg
- Product Type:
- Battery
