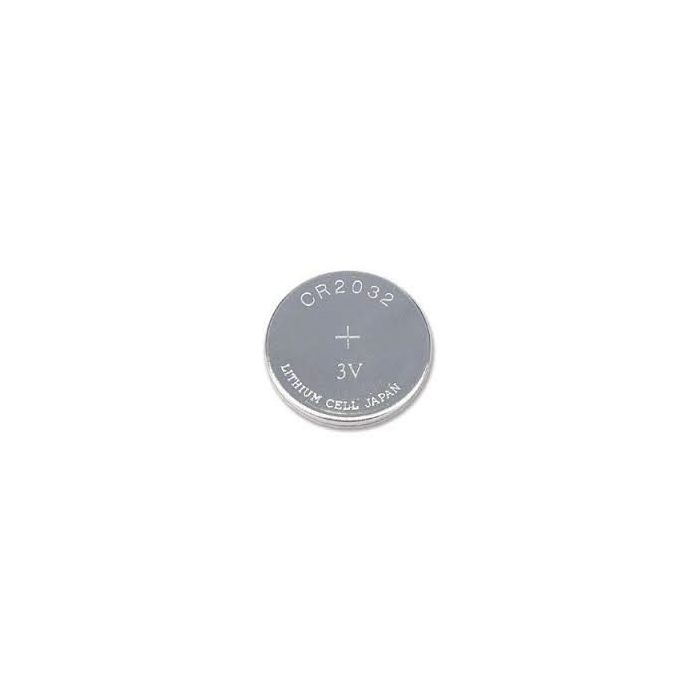

CR2032 Panasonic CR2032 3V Coin Lithium Battery
The CR2032 is a Panasonic coin-type lithium battery with a 3V nominal voltage and 225 mAh nominal capacity. It features a compact coin-cell format with a 20.0 mm maximum diameter and 3.2 mm maximum height.
The battery is suitable for small electronic devices requiring a CR2032 coin cell for power or memory backup, including card remote controls and smart transmitter tags.
Key Features
- CR2032 coin-cell format for compact electronics and memory backup applications.
- 3V nominal voltage for compatible device replacement.
- 225 mAh nominal capacity.
- 20.0 mm maximum diameter and 3.2 mm maximum height.
- Suitable for card remote controls, smart transmitter tags, and other compatible electronic devices.
- Catalogue Family:
- BATTERY
- Model:
- CR2032
- Battery Type:
- Coin-type lithium battery
- Nominal Voltage:
- 3V
- Nominal Capacity:
- 225 mAh
- Continuous Drain:
- 0.2 mA
- Diameter:
- 20.0 mm max.
- Height:
- 3.2 mm max.
- Weight:
- Approx. 2.8 g
- Operating Temperature:
- -30 deg C to +85 deg C
- Product Type:
- Battery
