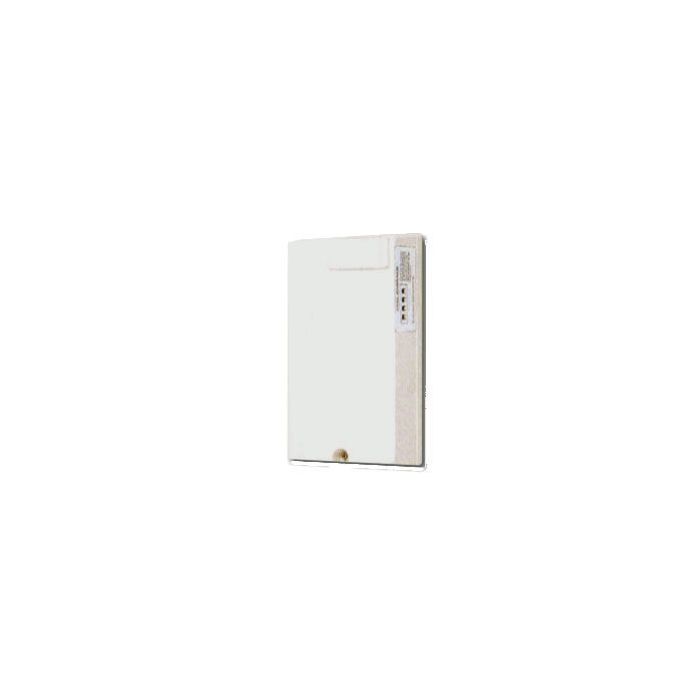

RY3DL Aiphone RY-3DL Door Release Adaptor
The RY3DL is an Aiphone RY-3DL door release adaptor designed to provide selective door release capability for compatible Aiphone intercom systems. It features normally open and normally closed relay outputs and is compatible with KB-3MRD, JP-4MED and IE-2AD(U) systems.
The adaptor enables a single intercom door-release button to activate the release associated with the door station currently in communication. Its flexible relay contacts, system-powered operation and single-gang form factor support convenient integration into multi-door access control installations.
Key Features
- Selective door release activates the release for the active door station
- Normally open and normally closed relay outputs support different lock types
- Operates from the connected system power supply
- Single-gang chassis for straightforward wall or box mounting
- Compatible with KB-3MRD, JP-4MED and IE-2AD(U) intercom systems
- Catalogue Family:
- INTERCOM
- Model:
- RY-3DL
- Function:
- 3 door release adaptor
- Compatible Systems:
- KB-3MRD, JP-4MED and IE-2AD(U)
- Power Source:
- 12-24V DC 30 mA or 12-16V AC 60 mA
- Relay Contacts:
- N/O or N/C output; 1 A at 50V AC and 1 A at 30V DC
- Wiring:
- 4 wires between master and adaptor; 2 wires to each door release
- Dimensions:
- 140 H x 74 W x 42 D mm
- Weight:
- Approx. 200 g
- Product Type:
- Intercom
