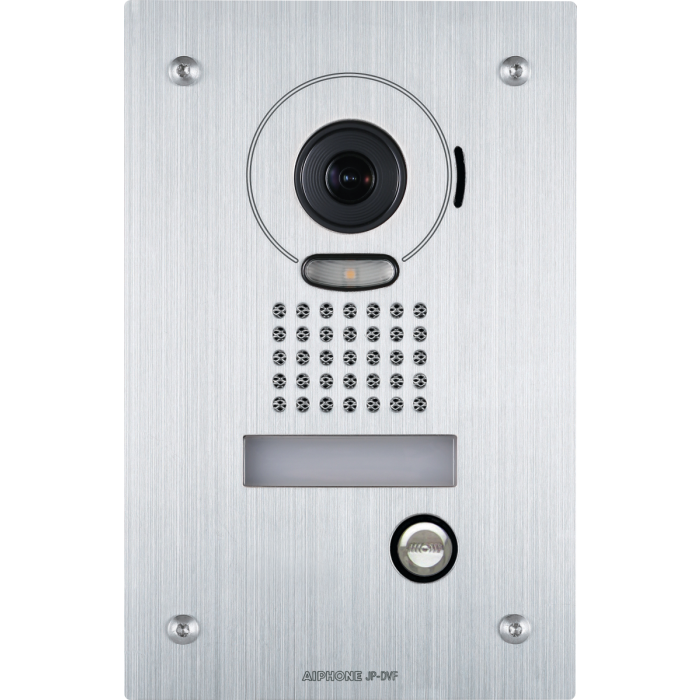

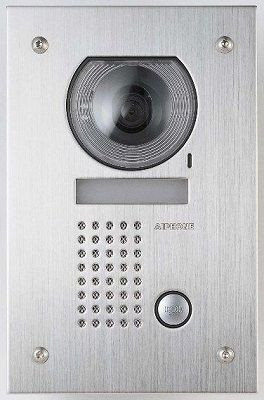

JP-DVF Aiphone JP Series Flush Mount Stainless Steel Video Door Station
The JP-DVF is an Aiphone JP Series flush-mount stainless steel colour video door station. It combines a 1/4 inch colour CMOS camera, open voice hands-free communication, a wide 170 degree horizontal camera angle and mounting on the built-in back box.
It suits JP video intercom entries where a recessed stainless front panel is preferred over a surface station. The IP54 and IK08 ratings, white-light illumination and 330 ft door-to-master wiring distance support specification for controlled entry points.
Key Features
- Flush stainless front panel gives the JP entry a clean recessed finish.
- Wide-angle camera with digital PTZ supports visitor viewing and framing from the master station.
- Built-in back box mounting keeps the door station aligned with its installation method.
- IP54 and IK08 ratings support use in demanding entry areas.
- Two-conductor wiring to the JP master helps simplify door-station cabling.
- Catalogue Family:
- INTERCOM
- Model:
- JP-DVF
- Product Type:
- Intercom
- Power Source:
- Supplied from master station
- Communication:
- Open voice hands-free communication
- Camera:
- 1/4 inch colour CMOS
- Minimum Illumination:
- 5 lux
- Camera Angle:
- Wide 170 degree approx. horizontal
- Wiring Distance:
- 330 ft to master on 18AWG 2-conductor cable
- Ambient Temperature:
- -10 to +60 deg C
- Mounting:
- Flush mount on built-in back box
- Housing:
- Stainless steel front panel
- Dimensions:
- 209 H x 135 W mm
- Weight:
- Approx. 570 g; back box approx. 450 g
- Ratings:
- IP54, IK08
