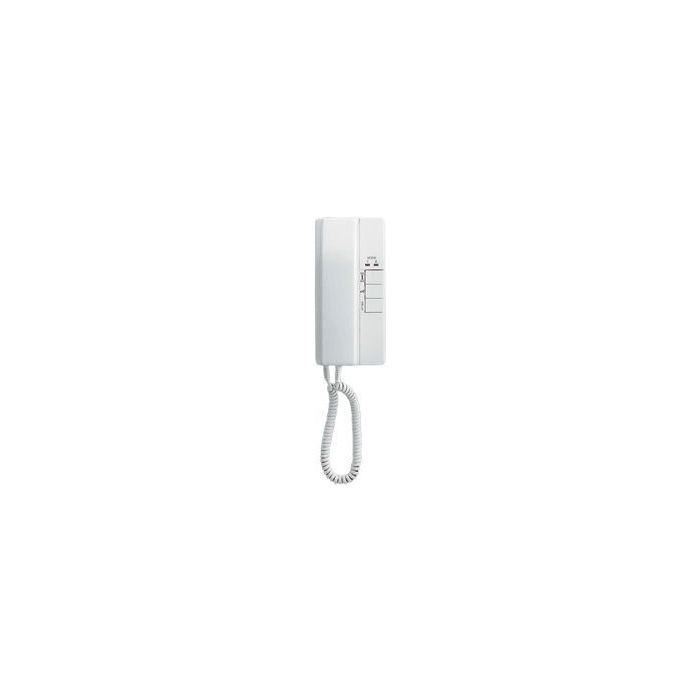

IE-2AD(U) Aiphone IE Series 2 Door 3 Room Master Handset
The IE-2AD(U) is an Aiphone IE Series chime-tone intercom room master station for systems supporting up to two door stations and up to three room stations. It features wall-mount installation, handset operation, a visitor call LED, door-release button, room-call button, and door-station monitoring and changeover functions.
Designed for multi-room residential audio entry systems, the master station allows users to answer calls from either of two door stations, communicate between rooms, operate door release, and adjust the electronic chime volume. It also supports an optional call-extension speaker.
Key Features
- Supports up to two door stations and three room stations.
- Door-station monitoring and changeover functions simplify management of multiple entrances.
- Room-call function enables internal communication and door-call transfer between rooms.
- Door-release button provides entry control when connected to a compatible release circuit.
- Adjustable electronic chime volume allows call alerts to be tailored to the installation.
- Catalogue Family:
- INTERCOM
- Model:
- IE-2AD(U)
- Product Type:
- Intercom
- System Type:
- IE Series chime-tone intercom, up to 2 doors and up to 3 rooms
- Power Source:
- AC 12-16 V, 200 mA or DC 12-24 V, 200 mA
- Current Consumption:
- Maximum 200 mA
- Calling:
- 4-stroke and 2-stroke electronic chime with slide volume switch
- Wiring:
- 2 wires to door station, 6 wires between room stations and 2 wires to door release
- Door Release Contact Capacity:
- DC/AC 24 V, 0.5 A
- Dimensions:
- 210 mm H x 100 mm W x 68 mm D
- Weight:
- Approx. 700 g
- Mounting:
- Wall-mount
