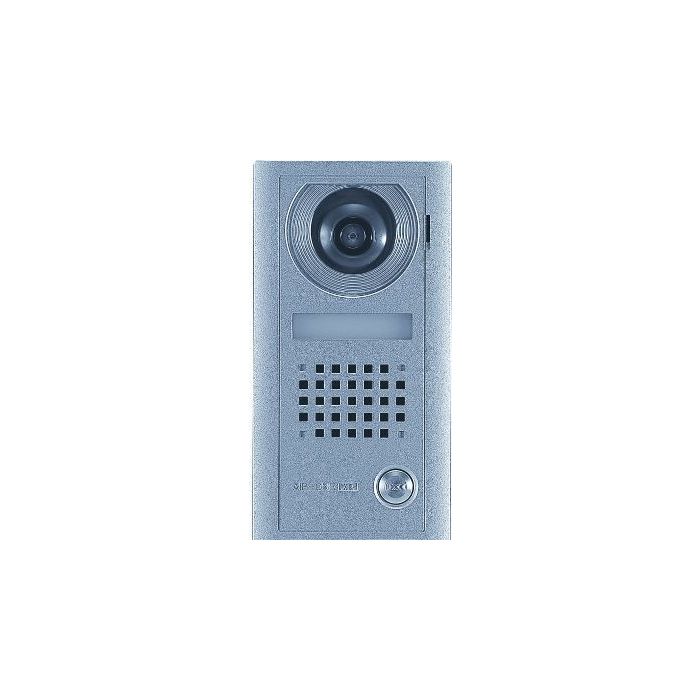

AXDV Aiphone AX-DV Surface Colour Camera Door Station - 195 x 100 x 25 mm
The AXDV is an Aiphone AX-DV surface wall-mount video door station for AX Series systems. It includes a call button, speaker, microphone, camera and white LED illuminators, with 24V DC power supplied from the CEU.
It suits AX installations requiring a surface-mounted colour camera door station with CAT-5e RJ45 wiring back to the system. Hands-free communication controlled by the master station, 250,000 pixel camera resolution and 5 lux minimum illumination support practical entrance communication.
Key Features
- Surface wall-mount format suits AX entrance station installations
- Integrated colour CCD camera supports visitor identification
- White LED illuminators assist low-light entrance visibility
- RJ45 CAT-5e connection supports structured intercom wiring
- Hands-free communication is controlled through the AX master station
- Catalogue Family:
- INTERCOM
- Model:
- AX-DV
- Power Source:
- 24V DC supplied from CEU
- Wiring Connection:
- RJ45 jack, CAT-5e
- Communication:
- Hands-free, auto-voice actuated or push-to-talk controlled by master station
- Camera:
- 1/4 inch colour CCD
- Pixels:
- 250,000
- Minimum Illumination:
- 5 lux
- Operating Temperature:
- -10 deg C to +60 deg C
- Mounting:
- Surface wall mount
- Housing:
- Aluminium die-cast front panel; resin main unit
- Colour:
- Silver/Grey
- Dimensions:
- 195 x 100 x 25 mm
- Weight:
- Approx. 400 g
- Product Type:
- Intercom
