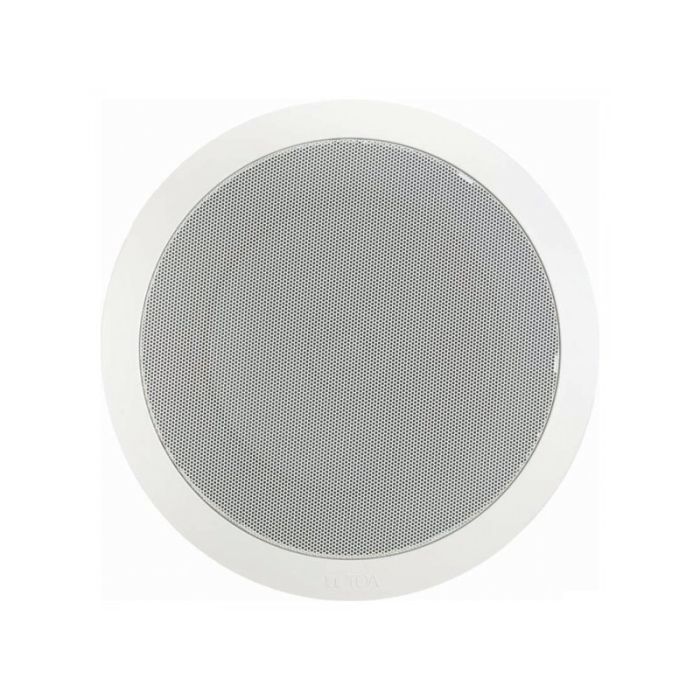

PC668RC TOA PC-668RC Flush Mount Ceiling Speaker - 15 W
The TOA PC-668RC is a flush mount ceiling speaker with an integrated resin panel and speaker frame. It features a 20 cm double cone-type speaker, 15 W 100 V/70 V line rating, spring clamp mounting and a push-in connector that supports bridging and branch connections.
Designed for ceiling public address applications, it combines a flush-mount design with selectable power taps for 100 V and 70 V line systems.
Key Features
- Flush ceiling design provides a clean installed appearance.
- 20 cm double cone speaker delivers high-output sound for public address applications.
- Spring clamp mounting supports efficient ceiling installation.
- Push-in connector supports bridging and branch wiring.
- Selectable power taps support 100 V and 70 V line systems.
- Catalogue Family:
- SPEAKERS
- Product Type:
- SPEAKERS
- Rated Output:
- 15 W (100 V, 70 V LINE)
- Rated Impedance:
- 100 V LINE: 670 OHM (15 W), 1 KOHM (10 W), 2 KOHM (5 W), 3.3 KOHM (3 W)
- Sensitivity:
- 96 DB (PINK NOISE 500 HZ TO 5 KHZ / 1 W, 1 M)
- Frequency Response:
- 65 HZ TO 20 KHZ AT 20 DB BELOW PEAK SPL
- Speaker Component:
- 20 CM (8 IN) DOUBLE CONE-TYPE
- Input Connector:
- Push-in connector, bridging and branch connection possible
- Mounting:
- SPRING CLAMP
- Dimensions:
- 280 mm diameter x 90 (D) mm
- Weight:
- 970 g
