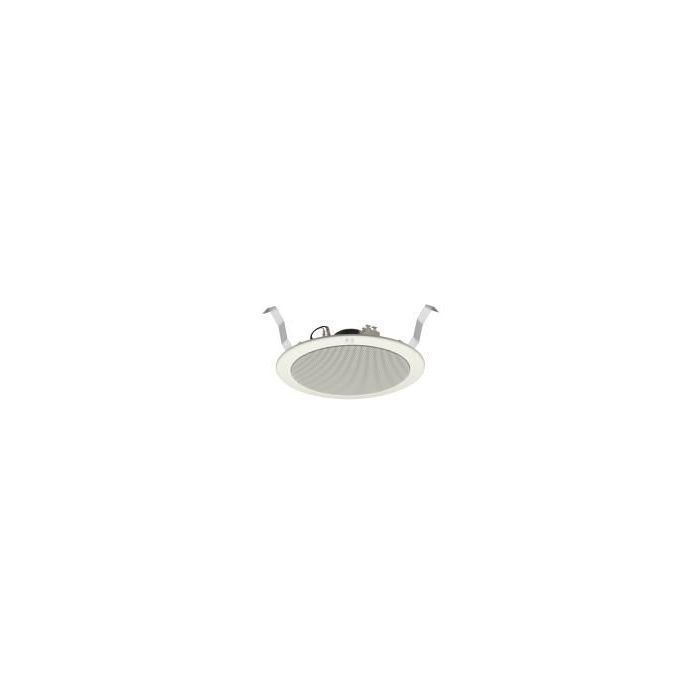

PC-658R TOA 6W 6 Inch Ceiling Mount Speaker
The PC-658R is a TOA ceiling mount speaker with a 16 cm 6 inch cone driver and a 6 W rating on 100 V line systems. It uses spring clamp mounting and a transformer tap arrangement that lets the input impedance be changed to suit the installation.
Integrated with a resin panel and speaker frame, the PC-658R provides a cost-effective flush ceiling speaker with a metal grille for interior PA layouts. Its 170 mm fixing hole and 5 - 25 mm ceiling thickness range support practical fitment in common ceiling materials.
Key Features
- 6 inch driver format supports broader ceiling speaker coverage than smaller variants.
- Spring clamp mounting helps keep multi-speaker installation efficient.
- Transformer tap selection allows output adjustment for the speaker line design.
- Integrated panel and frame create a neat finished ceiling appearance.
- Lightweight build supports easier handling during overhead work.
- Catalogue Family:
- SPEAKERS
- Model:
- PC-658R
- Rated Input:
- 6 W (100 V line), 3 W (70 V line)
- Rated Impedance:
- 100 V line: 1.7 kohm (6 W), 3.3 kohm (3 W), 10 kohm (1 W); 70 V line: 1.7 kohm (3 W), 3.3 kohm (1.5 W), 10 kohm (0.5 W)
- Sensitivity:
- 90 dB (1 W, 1 m)
- Frequency Response:
- 65 - 18,000 Hz
- Speaker Component:
- 16 cm (6 inch) cone type
- Mounting Hole:
- Diameter 170 +/-5 mm
- Ceiling Thickness:
- 5 - 25 mm
- Mounting Method:
- Spring clamp
- Finish:
- Polypropylene resin baffle off-white; surface-treated steel grille net off-white paint
- Dimensions:
- Diameter 192 x 73 D mm
- Weight:
- 500 g
- Product Type:
- Speakers
