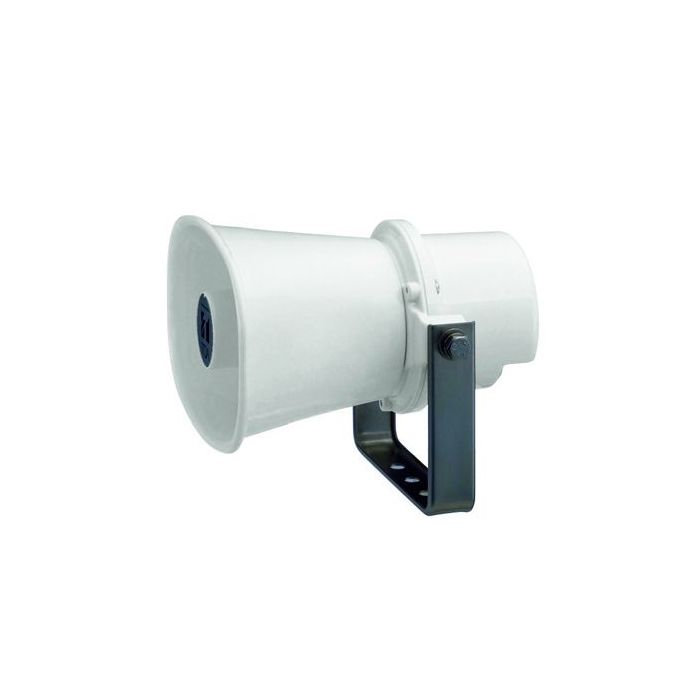

SC-610 TOA 10W 8 Ohm Paging Horn Speaker
The SC-610 is a TOA 10 W low-impedance 8 ohm paging horn speaker for indoor and outdoor public address applications. The SC Series uses an oval horn format and a diaphragm design intended to support clear speech output.
Its aluminium horn flare, ABS reflector and rear cover, stainless steel bracket hardware and IP65 rating suit paging coverage in exposed or industrial areas. A 315 - 12,500 Hz frequency response and 110 dB peak sound pressure level support announcement clarity.
Key Features
- Low-impedance 8 ohm format suits simple amplifier speaker runs.
- Oval horn design supports focused speech clarity for announcements.
- Powder-coated aluminium flare and stainless hardware support outdoor installation.
- IP65 construction gives confidence for exposed paging locations.
- Compact horn dimensions help fit paging coverage into constrained mounting areas.
- Catalogue Family:
- SPEAKERS
- Model:
- SC-610
- Rated Input:
- 10 W; 5 W for mobile mount use
- Rated Impedance:
- 8 ohm
- Sound Pressure Level:
- 110 dB (1 W, 1 m at 500 to 2,500 Hz peak level)
- Frequency Response:
- 315 - 12,500 Hz
- IP Code:
- IP65
- Operating Temperature:
- -20 C to +55 C
- Finish:
- Aluminium horn flare off-white powder coating; ABS reflector horn and rear cover; stainless steel bracket, screws and bolts
- Dimensions:
- 172 W x 161 H x 188 D mm
- Weight:
- 1 kg
- Product Type:
- Speakers
