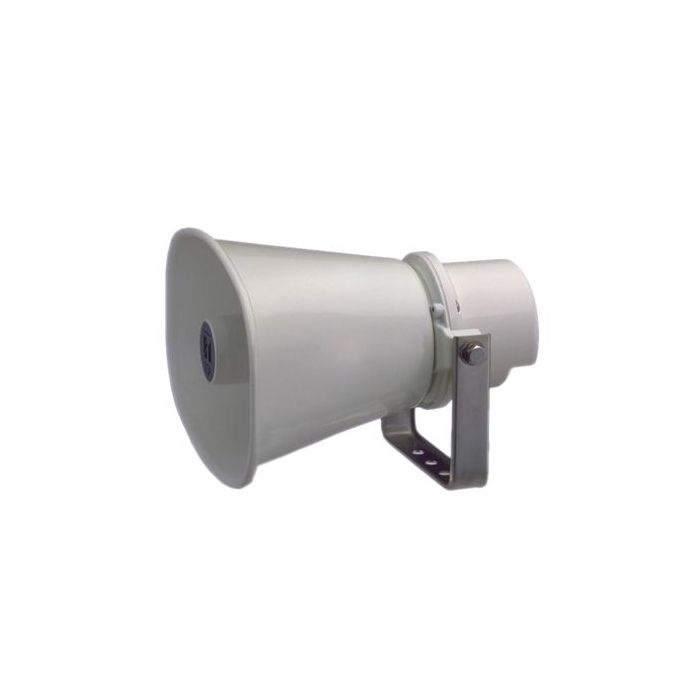

SC-615M TOA 15W 70V/100V Paging Horn Speaker
The SC-615M is a TOA 15 W high-impedance paging horn speaker for 70 V and 100 V line public address systems. The SC Series uses an oval horn format and a diaphragm design intended to support clear speech output.
Its aluminium horn flare, ABS reflector and rear cover, stainless steel bracket hardware and IP65 rating suit paging coverage in exposed or industrial areas. A panel-mounted input impedance selector helps match the horn to the speaker line without disassembly.
Key Features
- 15 W line operation supports stronger paging output than smaller SC models.
- Oval horn design supports focused speech clarity for announcements.
- External impedance selection simplifies commissioning and later adjustment.
- IP65 construction gives confidence for exposed paging locations.
- Weather-ready hardware helps suit commercial outdoor PA projects.
- Catalogue Family:
- SPEAKERS
- Model:
- SC-615M
- Rated Input:
- 15 W
- Line Voltage:
- 100 V line or 70 V line
- Rated Impedance:
- 100 V line: 670 ohm (15 W), 1 kohm (10 W), 2 kohm (5 W), 3.3 kohm (3 W); 70 V line: 330 ohm (15 W), 670 ohm (7.5 W), 1 kohm (5 W), 2 kohm (2.5 W), 3.3 kohm (1.5 W)
- Sound Pressure Level:
- 112 dB (1 W, 1 m at 500 to 2,500 Hz peak level)
- Frequency Response:
- 280 - 12,500 Hz
- IP Code:
- IP65
- Operating Temperature:
- -20 C to +55 C
- Finish:
- Aluminium horn flare off-white powder coating; ABS reflector horn and rear cover; stainless steel bracket, screws and bolts
- Dimensions:
- 222 W x 179 H x 234 D mm
- Weight:
- 1.3 kg
- Product Type:
- Speakers
