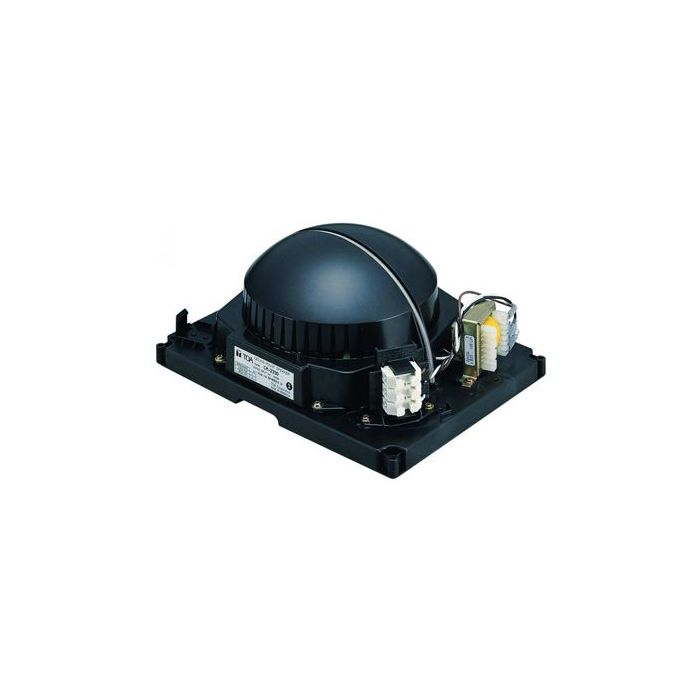

CM-960 TOA 6W Ceiling Mount Speaker
The CM-960 is a TOA 6 W separate type ceiling speaker with a domed flush-mount 16 cm dynamic cone driver for 100 V line systems. It uses spring catch mounting, push-in connectors and two-branch bridging terminal support for speaker-line wiring.
Designed for ceiling public address installations, it works with CP-93 or CP-97 front grilles and supports ceiling boards up to 50 mm thick. The protected speaker cover and quick wire hook-up make it suited to tidy paging and background music layouts.
Key Features
- Flush-mount format keeps the speaker discreet in ceiling spaces.
- Spring catch installation helps reduce fitting time during ceiling work.
- Push-in wiring and bridging terminals simplify line connection.
- CP-93 or CP-97 grille pairing lets the speaker suit the required finish.
- 16 cm dynamic cone driver supports clear general PA reproduction.
- Catalogue Family:
- SPEAKERS
- Model:
- CM-960
- Rated Input:
- 6 W
- Rated Impedance:
- 1.7 kohm (6 W), 3.3 kohm (3 W), 6.7 kohm (1.5 W), 13 kohm (0.8 W)
- Sensitivity:
- 92 dB (1 W/1 m)
- Frequency Response:
- 100 - 12,000 Hz
- Speaker Component:
- 16 cm dynamic cone-type speaker
- Mounting Hole:
- Diameter 200 mm
- Ceiling Thickness:
- Max. 50 mm
- Speaker Mounting Method:
- Spring catch
- Connection:
- Push-in connector with bridging and branch connections
- Dimensions:
- 235 W x 174 H x 106.5 D mm
- Weight:
- 850 g
- Optional Applicable Panels:
- CP-93 and CP-97
- Product Type:
- Speakers
