PA-6812E Wide Angle Ceiling Mount PIR Detector - 12 m

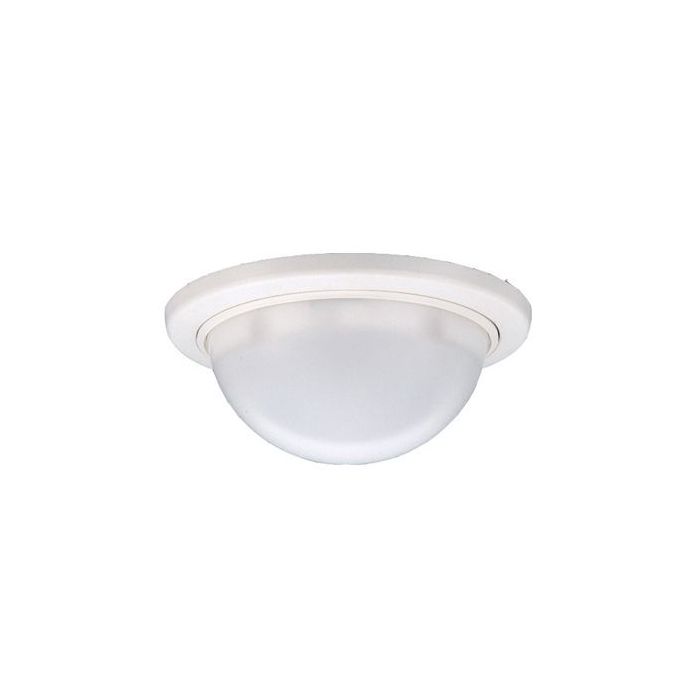

The PA-6812E is a TAKEX PA-6800 series passive infrared detector with wide-angle ceiling coverage up to 40 ft (12 m). It features a compact dome housing, a snap-in base design and a mirror optic system for indoor intrusion detection.
The detector is designed for indoor ceiling installations requiring wide-area coverage. It features selectable sensitivity, pulse-count adjustment, N.C./N.O. alarm output and auto or manual alarm memory to suit a range of installation requirements.
Key Features
- Wide-angle PIR coverage for indoor ceiling-mounted detection.
- Compact 120 mm dome housing for a discreet installation.
- Snap-in sensor and base design for simplified installation and maintenance.
- Selectable pulse count, sensitivity and alarm contact mode.
- Alarm and memory LED functions for event indication.
- Catalogue Family:
- ALARM SENSOR
- Model:
- PA-6812E
- Product Type:
- Alarm Sensor
- Coverage:
- Wide angle, 40 ft (12 m) max.
- Detection System:
- Passive infrared
- Supply Voltage:
- 9 V to 18 V DC, non-polarity
- Current Consumption:
- N.C.: 25 mA or less; N.O.: 35 mA or less
- Alarm Signal:
- Dry contact semiconductor, N.C./N.O. selectable; reset approx. 2 sec.; 30 V AC/DC 0.25 A
- Alarm Memory:
- Auto reset or manual control
- Ambient Temperature:
- -15 deg C to +55 deg C without condensation
- Mounting Position:
- Indoor ceiling; wall mount with optional BCW-401
- Appearance:
- ABS resin body; PE resin cover
