PA-6805E Spot Ceiling Mount PIR Detector

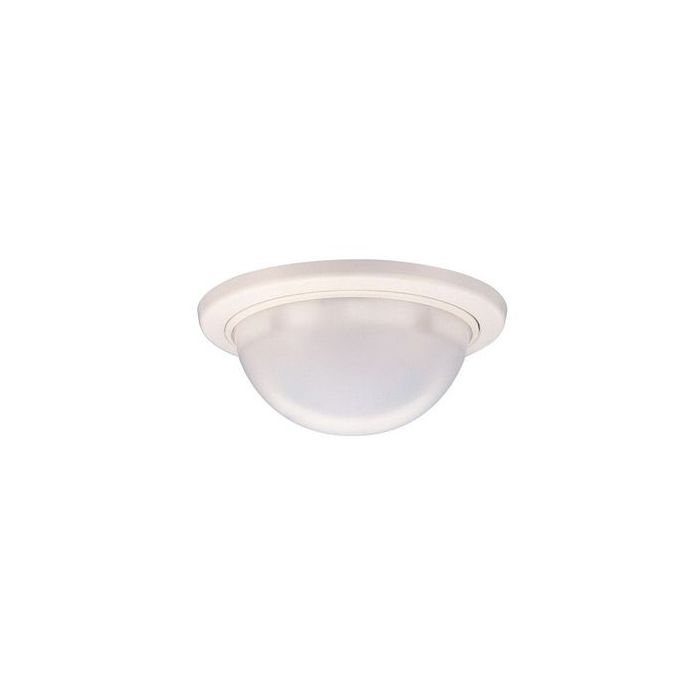

The PA-6805E is a TAKEX PA-6800 series passive infrared detector with a spot protection pattern for indoor ceiling mounting. Its compact dome design features a separate sensor unit and base, allowing snap-in installation for simplified installation and maintenance.
Designed for focused indoor PIR detection, the detector features selectable sensitivity, adjustable pulse count, selectable N.C./N.O. alarm output and automatic or manual alarm memory to support a range of security system applications.
Key Features
- Compact 120 mm diameter low-profile dome design for discreet ceiling installation.
- Snap-in sensor unit simplifies installation and maintenance.
- Selectable sensitivity and pulse count support application-specific adjustment.
- PhotoMOS FET relay provides quiet N.C./N.O. alarm switching.
- Alarm and memory LED indicators assist commissioning and system maintenance.
- Catalogue Family:
- ALARM SENSOR
- Model:
- PA-6805E
- Product Type:
- Alarm Sensor
- Coverage:
- Spot protection, 13 ft (4 m) max.
- Detection System:
- Passive infrared
- Supply Voltage:
- 9 V to 18 V DC, non-polarity
- Current Consumption:
- N.C.: 25 mA or less; N.O.: 35 mA or less
- Alarm Signal:
- Dry contact semiconductor, N.C./N.O. selectable; reset approx. 2 sec.; 30 V AC/DC 0.25 A
- Alarm Memory:
- Auto reset or manual control
- Ambient Temperature:
- -15 degrees C to +55 degrees C without condensation
- Mounting Position:
- Indoor ceiling; wall mount with optional BCW-401
- Appearance:
- ABS resin body; PE resin cover
